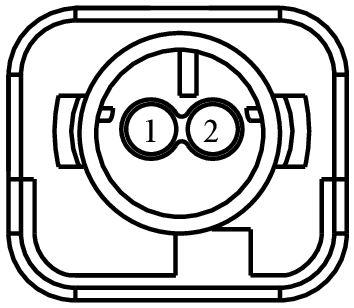

Connector End View (C3321) - DRIVER SIDE AIR CURTAIN

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3321	DRIVER SIDE AIR CURTAIN	14A005			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR109 (BN-BU)	18	CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE +	NA
2	RR109 (BU-GN)	18	CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE -	NA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1228

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BMA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Airbag - Side Curtain
