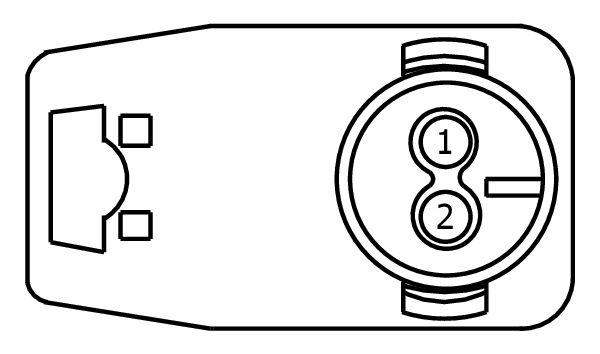

Connector End View (C2436) - DRIVER SIDE FOOTWELL AIR DISCHARGE TEMPERATURE SENSOR
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C2436 | DRIVER SIDE FOOTWELL AIR DISCHARGE TEMPERATURE SENSOR | 14401 | #N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-NA | DU2Z-14474-BA | 0.64 |
| 9U5T-14474-LA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VH409 (WH) | 26 | SENSOR - DISCHARGE TEMP. # LEFT (LEFT FRONT PANEL) | 9U5T-14474-NA | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | RH111 (GY) | 22 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS | Ford China | 9U5T-14474-LA | |||
| 3 | RH111 (GY) | 26 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS | 9U5T-14474-NA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-911
Service Part Number:
8U2Z-14S411-LA
Gauge:
18
Pin material:
Silver
Cavities:
3
