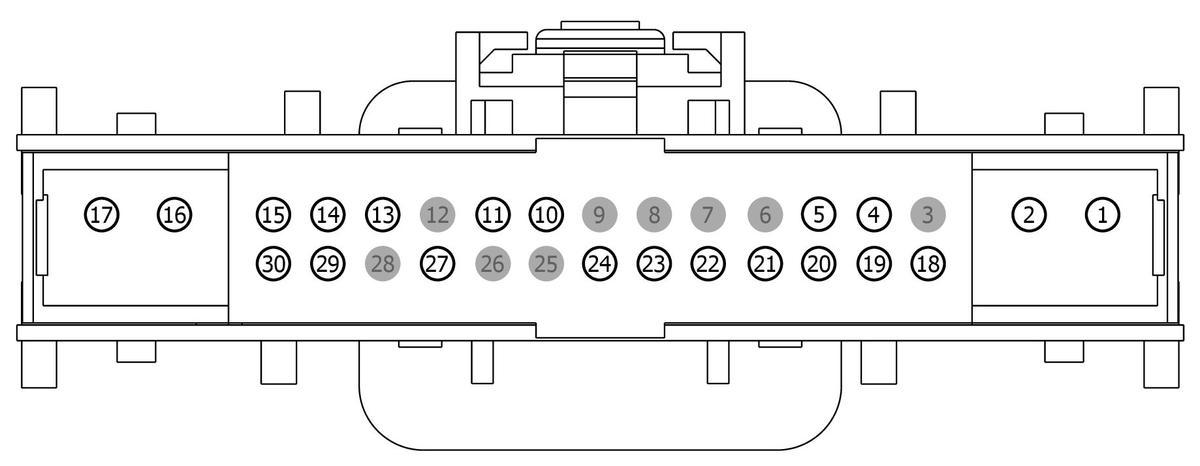

Connector End View (C2402B) - FRONT CONTROLS INTERFACE MODULE (FCIM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2402B	FRONT CONTROLS INTERFACE MODULE (FCIM)	14401			#N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7C3T-14474-LA	Not Available
7C3T-14474-KA	Not Available
9U5T-14474-DA	DU2Z-14474-AA	0.64
9U5T-14474-YA	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB65 (RD)	14	FUSE - 65 OR CIRCUIT BREAKER	7C3T-14474-LA
2	SBB65 (RD)	14	FUSE - 65 OR CIRCUIT BREAKER	7C3T-14474-LA
3	*	*	Not Used	N/A
4	VH410 (GY)	26	SENSOR - DISCHARGE TEMP. # LEFT 2ND (LEFT FRONT FLOOR)	9U5T-14474-YA
5	VH409 (WH)	26	SENSOR - DISCHARGE TEMP. # LEFT (LEFT FRONT PANEL)	9U5T-14474-YA
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	VH412 (YE)	26	SENSOR - DISCHARGE TEMP. # RIGHT 2ND (RIGHT FRONT FLOOR)	9U5T-14474-YA
11	VH411 (VT)	26	SENSOR - DISCHARGE TEMP. # RIGHT (RIGHT FRONT PANEL)	9U5T-14474-YA
12	*	*	Not Used	N/A
13	CH212 (BU-OG)	26	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 1 / CLOSE (IF PLUS)	9U5T-14474-YA
14	CH213 (BN)	26	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 2 / OPEN (IF PLUS)	9U5T-14474-YA
14	CH213 (BN-WH)	26	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 2 / OPEN (IF PLUS)	Ford China	9U5T-14474-YA
15	RHS10 (BU-OG)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP.	Lincoln	9U5T-14474-DA
15	RHS10 (BU-OG)	22	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP.	9U5T-14474-DA
16	CHS02 (YE-BU)	18	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER +	7C3T-14474-KA
17	CHS07 (GY-BU)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER +	7C3T-14474-KA
18	CH211 (YE)	26	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COMMON	9U5T-14474-YA
19	VH413 (WH)	26	SENSOR - HUMIDITY	9U5T-14474-YA
20	CLS32 (BN-YE)	26	SWITCH - HAZARD	9U5T-14474-YA
21	VH416 (VT)	26	SENSOR - SUN LOAD # LEFT	9U5T-14474-YA
22	VH417 (YE)	26	SENSOR - SUN LOAD # RIGHT	9U5T-14474-YA
23	CH253 (WH)	26	CTRL MOD. - CLIMATE # START/STOP SWITCH DISABLE	Ford China	9U5T-14474-YA
23	CH253 (WH)	22	CTRL MOD. - CLIMATE # START/STOP SWITCH DISABLE	9U5T-14474-DA
24	CE469 (BN)	26	CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR	Ford China	9U5T-14474-YA
24	CE469 (BN)	22	CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR	Ford FNA	N/A
25	*	*	Not Used	N/A
26	*	*	Not Used	N/A
27	VHA31 (GN-BN)	22	SENSOR - REAR TEMP	9U5T-14474-DA
28	*	*	Not Used	N/A
29	VH414 (GN)	26	SENSOR - INCAR TEMP.	9U5T-14474-YA
30	RHS05 (YE-VT)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP.	9U5T-14474-DA
30	RHS05 (YE-VT)	22	CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP.	Ford China	9U5T-14474-DA
