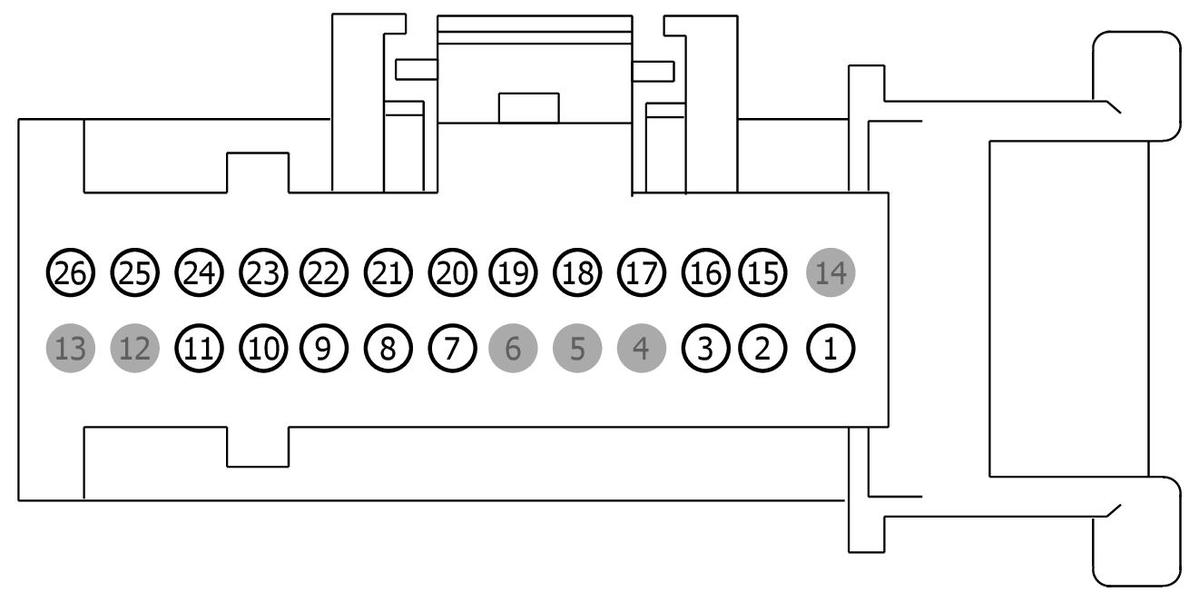

Connector End View (C2402A) - FRONT CONTROLS INTERFACE MODULE (FCIM)

Connector: Description Color Harness Base Part # Service Pigtail
C2402A FRONT CONTROLS INTERFACE MODULE (FCIM) 14401 #N/A Not Available
GFDWR89073Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14474-DA DU2Z-14474-AA 0.64
9U5T-14474-YA DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 GD216 (BK-VT) 20 GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT Ford 9U5T-14474-DA
1 GD216 (BK-GY) 20 GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT Lincoln 9U5T-14474-DA
2 RH111 (GY) 22 CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS Ford China 9U5T-14474-DA
2 RH111 (GY) 26 CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS 9U5T-14474-YA
3 LH111 (BN-WH) 22 CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS 9U5T-14474-DA
3 LH111 (BN-WH) 26 CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS Lincoln 9U5T-14474-YA
4 * * Not Used N/A
5 * * Not Used N/A
6 * * Not Used N/A
7 CRD02 (BN-BU) 22 CTRL MOD. - RELAY HEATER REAR WINDOW 9U5T-14474-DA
8 CH239 (BU-WH) 26 CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2 / OPEN (IF PLUS) 9U5T-14474-YA
8 CH239 (BU) 26 CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2 / OPEN (IF PLUS) Ford China 9U5T-14474-YA
9 CH238 (YE) 26 CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 1 / CLOSE (IF PLUS) 9U5T-14474-YA
10 CH237 (VT-WH) 26 CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COMMON 9U5T-14474-YA
11 CH123 (VT-GN) 22 CTRL MOD. - BLOWER MOTOR RELAY 9U5T-14474-DA
12 * * Not Used N/A
13 * * Not Used N/A
14 * * Not Used N/A
15 VH451 (WH-GN) 22 SENSOR - AIR QUALITY 9U5T-14474-DA
16 CH206 (YE-BU) 26 CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COMMON 9U5T-14474-YA
17 VDB06 (OG) 26 CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH Ford SYNC I 9U5T-14474-YA
17 VDB06 (GY-OG) 22 CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH Ford SYNC III, Ford China 9U5T-14474-DA
17 VDB06 (GY) 26 CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH Lincoln, Ford - heated steering 9U5T-14474-YA
17 VDB06 (GY) 22 CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH Lincoln - heated steering N/A
18 VDB07 (VT-OG) 22 CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW Ford SYNC III, Ford China N/A
18 VDB07 (VT) 26 CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW Ford SYNC I, Lincoln - without heated steering 9U5T-14474-YA
18 VDB07 (VT) 22 CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW Lincoln - heated steering 9U5T-14474-YA
19 VH406 (VT) 26 SENSOR - A/C EVAPORATOR TEMPERATURE (ACET) 9U5T-14474-YA
20 CH202 (BU-WH) 26 CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 1 / FLOOR (IF PLUS) 9U5T-14474-YA
21 CH203 (GN) 26 CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 2 / PANEL (IF PLUS) 9U5T-14474-YA
22 CH201 (BN) 26 CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COMMON 9U5T-14474-YA
23 VH101 (WH) 26 CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL 9U5T-14474-YA
24 CH208 (GN-WH) 26 CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS) 9U5T-14474-YA
25 CH207 (BU-OG) 26 CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS) 9U5T-14474-YA
26 SBP12 (GN-RD) 20 FUSE - 12 OR CIRCUIT BREAKER 9U5T-14474-DA
