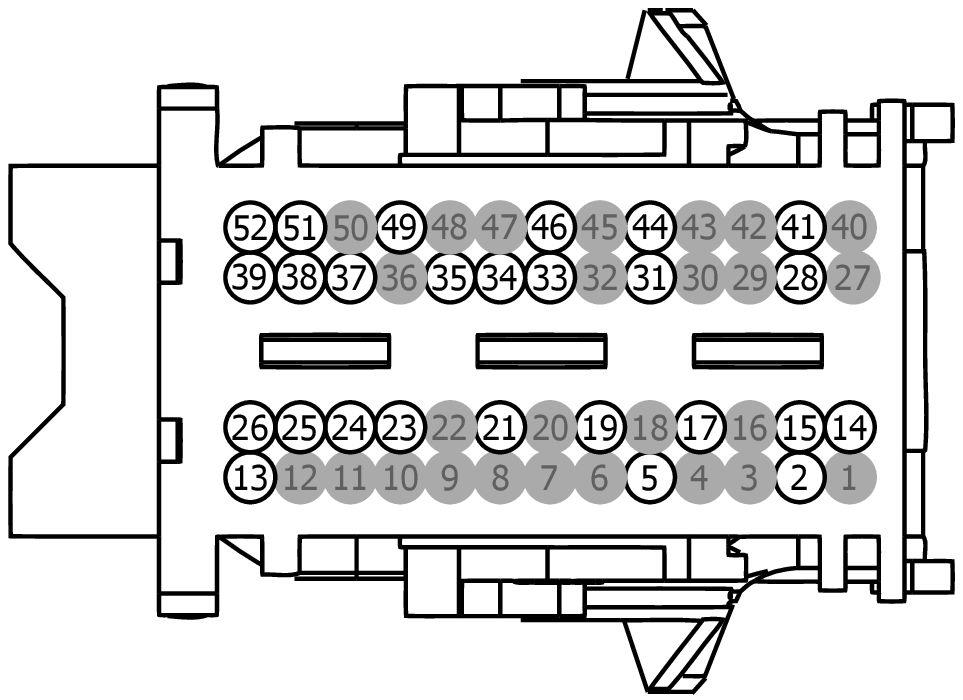

Connector End View (C2280D) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280D	BODY CONTROL MODULE (BCM)	14A005			#N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
FU5T-14474-LA	DU2Z-14474-AA	0.64
9U5T-14474-DA	DU2Z-14474-AA	0.64
9U5T-14474-EA	DU2Z-14474-AA	0.64
9U5T-14474-YA	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	CPK30 (VT-GN)	22	SWITCH - KEYLESS KEYPAD LINE B	FU5T-14474-LA
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	CPW01 (BN-BU)	22	CTRL MOD. - POWER WINDOW GLOBAL SET +	FU5T-14474-LA
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	CLS17 (YE-GY)	22	CTRL MOD. - STOP HIGH MOUNT	FU5T-14474-LA
14	CPL60 (BN)	22	SWITCH - LIFTGATE GLASS RELEASE	Ford	9U5T-14474-DA
14	CPL60 (BN-YE)	22	SWITCH - LIFTGATE GLASS RELEASE	Lincoln, Ford China	FU5T-14474-LA
15	CPK31 (YE-GN)	22	SWITCH - KEYLESS KEYPAD LINE C	9U5T-14474-DA
16	*	*	Not Used	N/A
17	CPL42 (GY-YE)	22	SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK	FU5T-14474-LA
18	*	*	Not Used	N/A
19	CPL39 (YE)	22	SWITCH - LATCH REAR PASSENGER SIDE OR RIGHT REAR # AJAR (INCL.SLIDING DOOR)	9U5T-14474-DA
20	*	*	Not Used	N/A
21	CPL31 (WH)	22	SWITCH - LATCH PASSENGER OR RIGHT FRONT # AJAR	FU5T-14474-LA
22	*	*	Not Used	N/A
23	CLS53 (GY-VT)	22	CTRL MOD. - STOP/TURN RIGHT OUTBOARD	9U5T-14474-DA
23	CLS53 (GY)	18	CTRL MOD. - STOP/ TURN RIGHT OUTBOARD	Police	N/A
24	CLS51 (GN)	18	CTRL MOD. - STOP/ TURN LEFT OUTBOARD	Police	N/A
24	CLS51 (WH-GN)	22	CTRL MOD. - STOP/TURN LEFT OUTBOARD	FU5T-14474-LA
25	CLS06 (GN-OG)	22	CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT	Lincoln, Ford China	FU5T-14474-LA
25	CLS06 (OG-GN)	22	CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT	N/A
26	CLS23 (GY-OG)	22	CTRL MOD. - TURN LAMP LEFT REAR	9U5T-14474-DA
27	*	*	Not Used	N/A
28	CPK29 (GY-BU)	22	SWITCH - KEYLESS KEYPAD LINE A	FU5T-14474-LA
29	*	*	Not Used	N/A
30	*	*	Not Used	N/A
31	CLS55 (GN-BU)	22	LAMP - TURN REAR LEFT # SIGNAL OUT	FU5T-14474-LA
32	*	*	Not Used	N/A
33	CPL26 (GN-VT)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR	9U5T-14474-DA
34	CPL44 (YE-OG)	22	SWITCH - LIFTGATE/DECKLID/CARGO # AJAR	9U5T-14474-DA
34	CPL81 (BN-VT)	22	CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID/CARGO AJAR	Lincoln	FU5T-14474-LA
35	CPK28 (WH-GN)	22	CTRL MOD. - SWITCH KEYLESS KEYPAD ILLUMINATION	FU5T-14474-LA
36	*	*	Not Used	N/A
37	VDN04 (VT-WH)	22	CTRL MOD. - LIN BUS # BCM 4	FU5T-14474-LA
38	VLN73 (GY-BN)	22	CTRL MOD. - AMBIENT LIGHTING LIN BUS	FU5T-14474-LA
39	CPL89 (BN-BU)	20	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER	Lincoln	9U5T-14474-DA
39	CPL89 (BN-BU)	22	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER	9U5T-14474-DA
40	*	*	Not Used	N/A
41	VMC05 (VT-OG)	22	CTRL MOD. - VEHICLE SPEED OUTPUT (VSOUT)	Lincoln Police	FU5T-14474-LA
41	VMC05 (OG)	26	CTRL MOD. - VEHICLE SPEED OUTPUT (VSOUT)	Ford China	9U5T-14474-YA
41	VMC05 (OG)	22	CTRL MOD. - VEHICLE SPEED OUTPUT (VSOUT)	Ford	N/A
42	*	*	Not Used	N/A
43	*	*	Not Used	N/A
44	CLS54 (BU-OG)	22	LAMP - TURN REAR RIGHT # SIGNAL OUT	FU5T-14474-LA
45	*	*	Not Used	N/A
46	CPL36 (GN)	22	SWITCH - LATCH REAR DRIVER SIDE OR LEFT REAR # AJAR (INCL.SLIDING DOOR)	FU5T-14474-LA
47	*	*	Not Used	N/A
48	*	*	Not Used	N/A
49	CR167 (YE-VT)	22	CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS)	Ford	FU5T-14474-LA
49	CR167 (YE-VT)	18	CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS)	Lincoln	9U5T-14474-EA
49	*	*	Not Used	N/A
50	*	*	Not Used	N/A
51	CLS05 (BU-GY)	22	CTRL MOD. - PARK	Ford	9U5T-14474-DA
51	CLS07 (BN-YE)	22	CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT	Lincoln	FU5T-14474-LA
52	CLS27 (GN-OG)	22	CTRL MOD. - TURN LAMP RIGHT REAR	FU5T-14474-LA
