Connector End View (C3205) - INLINE
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C3205 | INLINE | 14D23314D230 | Not Available | |||||

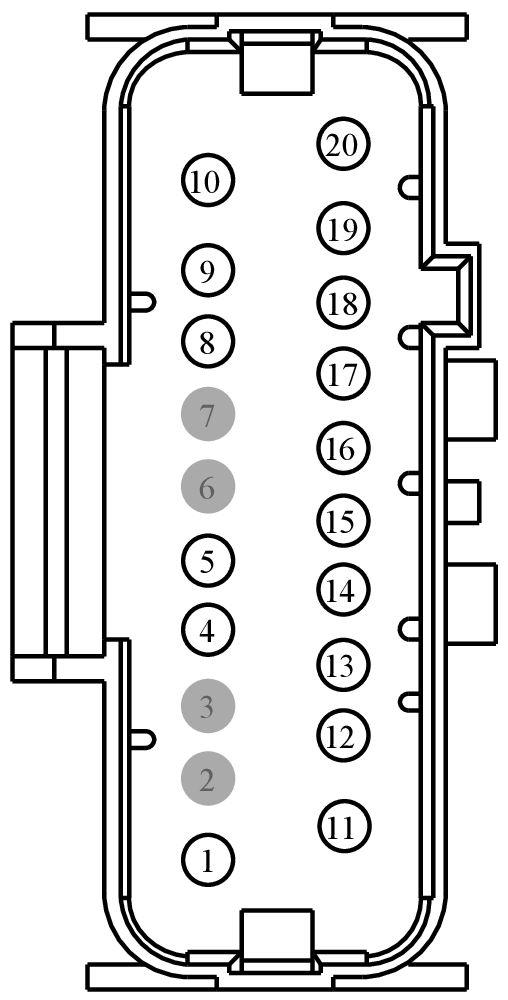

MALE
Harness
14D233

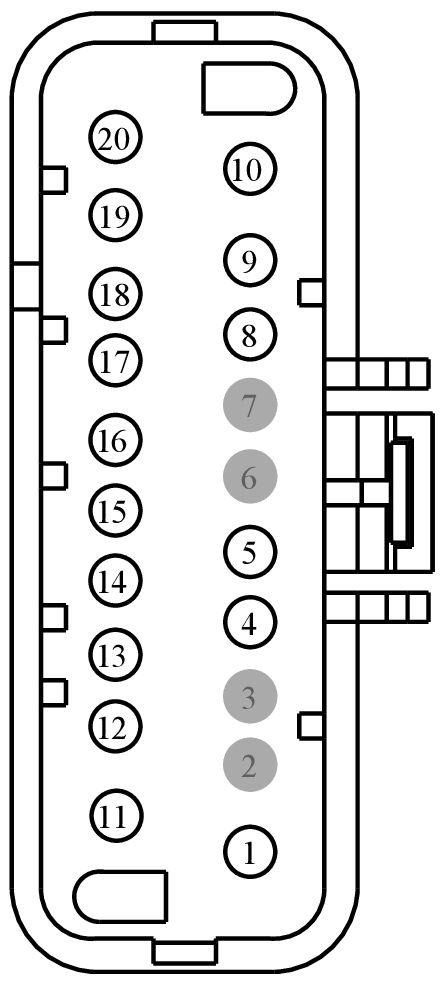

FEMALE
Harness
14D230
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-ABB | Not Available | |
| 97BG-14421-AAB | Not Available | |
| 97BG-14421-ACB | Not Available | |
| 97BG-14421-BCA | EU2Z-14421-EA | 2.8 |
| 3M5T-14474-HBA | DU2Z-14474-EA | 2.8 |
| 7C3T-14474-CA | DU2Z-14474-DA | 1.5 |
| 7C3T-14474-EA | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD904 (BK-BU) | 16 | 97BG-14421-ABB | |||
| 1 | GD904 (BK-BU) | 20 | 97BG-14421-AAB | |||
| 2 | CPS65 (WH-GN) | 20 | NA | |||
| 2 | CPS95 (GN-VT) | 20 | NA | |||
| 3 | CPS64 (BN-VT) | 20 | NA | |||
| 3 | CPS96 (WH-OG) | 20 | NA | |||
| 4 | VDB06 (GY-OG) | 20 | NA | |||
| 5 | VDB07 (VT-OG) | 20 | NA | |||
| 6 | VPS12 (VT-OG) | 20 | NA | |||
| 7 | RPS12 (GN-OG) | 20 | NA | |||
| 8 | CPS18 (BN-GN) | 18 | Power seats-Passenger | 97BG-14421-ABB | ||
| 8 | CPS18 (BN-GN) | 20 | 97BG-14421-AAB | |||
| 9 | CPS19 (GY-VT) | 18 | Power seats-Passenger | 97BG-14421-ABB | ||
| 9 | CPS19 (GY-VT) | 20 | 97BG-14421-AAB | |||
| 10 | CPS08 (VT-OG) | 14 | NA | |||
| 10 | CPS30 (VT-BN) | 14 | Power seats-Passenger | NA | ||
| 11 | CPS07 (GY-BN) | 14 | 97BG-14421-BCA | |||
| 11 | CPS29 (WH-BN) | 14 | Power seats-Passenger | 97BG-14421-BCA | ||
| 12 | VHS21 (BU-WH) | 20 | NA | |||
| 13 | RHS08 (VT-WH) | 18 | 97BG-14421-ABB | |||
| 14 | RHS02 (BU-OG) | 16 | 97BG-14421-ABB | |||
| 14 | RHS06 (WH) | 14 | Power seats-Passenger | 97BG-14421-ACB | ||
| 15 | CHS06 (BU-BN) | 14 | NA | |||
| 16 | VHS36 (YE-BU) | 20 | NA | |||
| 17 | RHS20 (GN-BU) | 20 | NA | |||
| 18 | CHS12 (YE-GN) | 16 | 97BG-14421-ABB | |||
| 19 | CHS08 (BN-YE) | 18 | 97BG-14421-ABB | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD904 (BK-BU) | 16 | 7C3T-14474-DA | |||
| 2 | * | * | N/A | |||
| 3 | * | * | N/A | |||
| 4 | VDB06 (GY-OG) | 20 | N/A | |||
| 5 | VDB07 (VT-OG) | 20 | N/A | |||
| 6 | * | * | N/A | |||
| 7 | * | * | N/A | |||
| 8 | CPS18 (BN-GN) | 18 | 7C3T-14474-DA | |||
| 9 | CPS19 (GY-VT) | 18 | 7C3T-14474-DA | |||
| 10 | CPS30 (VT-BN) | 14 | 3M5T-14474-HBA | |||
| 11 | CPS29 (WH-BN) | 14 | 3M5T-14474-HBA | |||
| 12 | CHS09 (GY) | 20 | 7C3T-14474-CA | |||
| 13 | RHS03 (GY-OG) | 18 | 7C3T-14474-DA | |||
| 14 | GD904 (BK-BU) | 16 | 7C3T-14474-DA | |||
| 14 | RHS01 (WH-VT) | 14 | with climate control seats | 7C3T-14474-EA | ||
| 15 | CHS01 (GY-VT) | 14 | 7C3T-14474-EA | |||
| 16 | CHS14 (GN) | 20 | 7C3T-14474-CA | |||
| 17 | RHS05 (YE-VT) | 20 | 7C3T-14474-CA | |||
| 18 | CHS12 (YE-GN) | 16 | 7C3T-14474-DA | |||
| 19 | CHS03 (GN-BN) | 18 | 7C3T-14474-DA | |||
