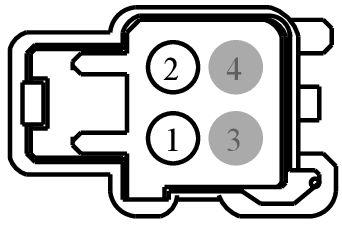

Connector End View (C3167) - SEAT CUSHION HEATER MAT, LEFT REAR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3167	SEAT CUSHION HEATER MAT, LEFT REAR	19K315			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
AU5T-14421-DA	EU2Z-14421-CA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CHS74 (WH-OG)	20	HEATER - SEAT REAR LEFT CUSHION/BACK	AU5T-14421-DA
2	GD382 (BK-GY)	20	GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT	AU5T-14421-DA
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1076

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BUB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses:

• Connector - Inline
• Element - Heated Seat
• Lamp - Ash Tray
• Lamp - Courtesy - Footwell
• Module - Remote Keyless Entry
• Motor - Heater/AC Blower (Auxiliary)
• Radio - Amplifier
• Switch - Convertable Top
