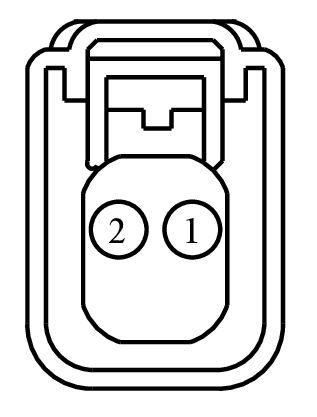

Connector End View (C3121) - SUBWOOFER, RIGHT REAR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3121	SUBWOOFER, RIGHT REAR	none	14A005	part#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VME78 (GN-VT)	18	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER RIGHT REAR FULL RANGE +	N/A
2	RME78 (GY)	18	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER RIGHT REAR FULL RANGE -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1231

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DVAB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Heater - Fuel
• Sensor - Oil Temperature
