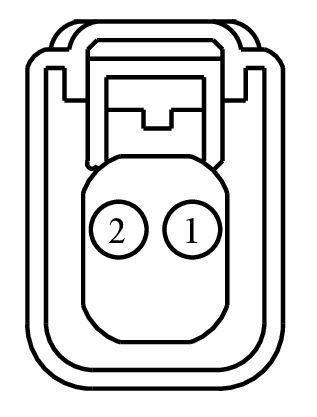

Connector End View (C3120) - SUBWOOFER, LEFT REAR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3120	SUBWOOFER, LEFT REAR	none	14A005	part#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VME79 (GY-VT)	18	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER LEFT REAR FULL RANGE +	N/A
2	RME79 (BN-GN)	18	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER LEFT REAR FULL RANGE -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1231

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DVAB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Heater - Fuel
• Sensor - Oil Temperature
