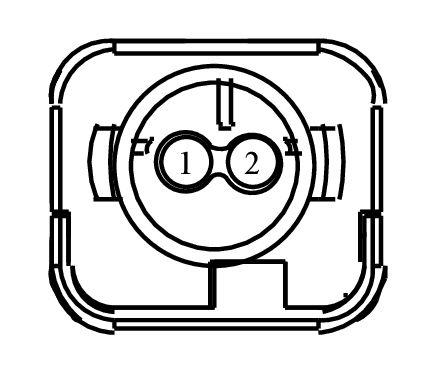

Connector End View (C3055) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C3054	INLINE	12A5812B392			See Below

MALE

Harness

12A581

FEMALE

Harness

2B392

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14421-HA	EU2Z-14421-CA	1.5
BU5T-14474-UA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	*	*	N/A
2	*	*	N/A
3	*	*	N/A
4	*	*	N/A
5	*	*	N/A
6	*	*	N/A
7	VCA03 (VT-WH)	20	BU5T-14421-HA
8	RCA17 (YE)	20	BU5T-14421-HA
9	*	*	N/A
10	LLF15 (WH-GN)	20	12A581	BU5T-14421-HA
11	RLF15 (GN-BU)	20	12A581	BU5T-14421-HA
12	VLF15 (GN)	20	12A581	BU5T-14421-HA
13	*	*	N/A
14	*	*	N/A
15	*	*	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	*	*	N/A
2	*	*	N/A
3	*	*	N/A
4	*	*	N/A
5	*	*	N/A
6	*	*	N/A
7	VCA03 (VT-WH)	20	BU5T-14474-UA
8	RCA17 (YE)	20	BU5T-14474-UA
9	*	*	N/A
10	LLF15 (WH-GN)	18	2B392	7C3T-14474-DA
11	RLF15 (GN-BU)	18	2B392	7C3T-14474-DA
12	VLF15 (GN)	18	2B392	7C3T-14474-DA
13	*	*	N/A
14	*	*	N/A
15	*	*	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1599

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-VB

Gauge:

16

Pin material:

Silver

Cavities:

16

Vehicle Uses:

• Connector - Inline
• Lamp - Park/Turn/Stop
• Mirror - Sideview
• Module - Heated Seat (driver)
• Module - Heated Seat (Passenger)
• Sensor - Knock

Pigtail Kit Part Number WPT-1404

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-VA

Gauge:

16

Pin material:

Silver

Cavities:

16

Vehicle Uses:

• Mating Connector WPT-1279
• Mirror - Sideview

Pigtail Kit Part Number WPT-1279

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ADA

Gauge:

16

Pin material:

Silver

Cavities:

16

Vehicle Uses:

• Lamp - Headlamp - High/Low Beam
• Mating Connector WPT-1404
• Module - Heated Seat (driver)
• Module - Transfer Case Shift Control
