Connector End View (C3052) - INLINE

Inline: Description Color Harness Base Part # Service Pigtail
C3052 INLINE 14D23114A005 Not Available

MALE

Harness

14D231

FEMALE

Harness

14A005

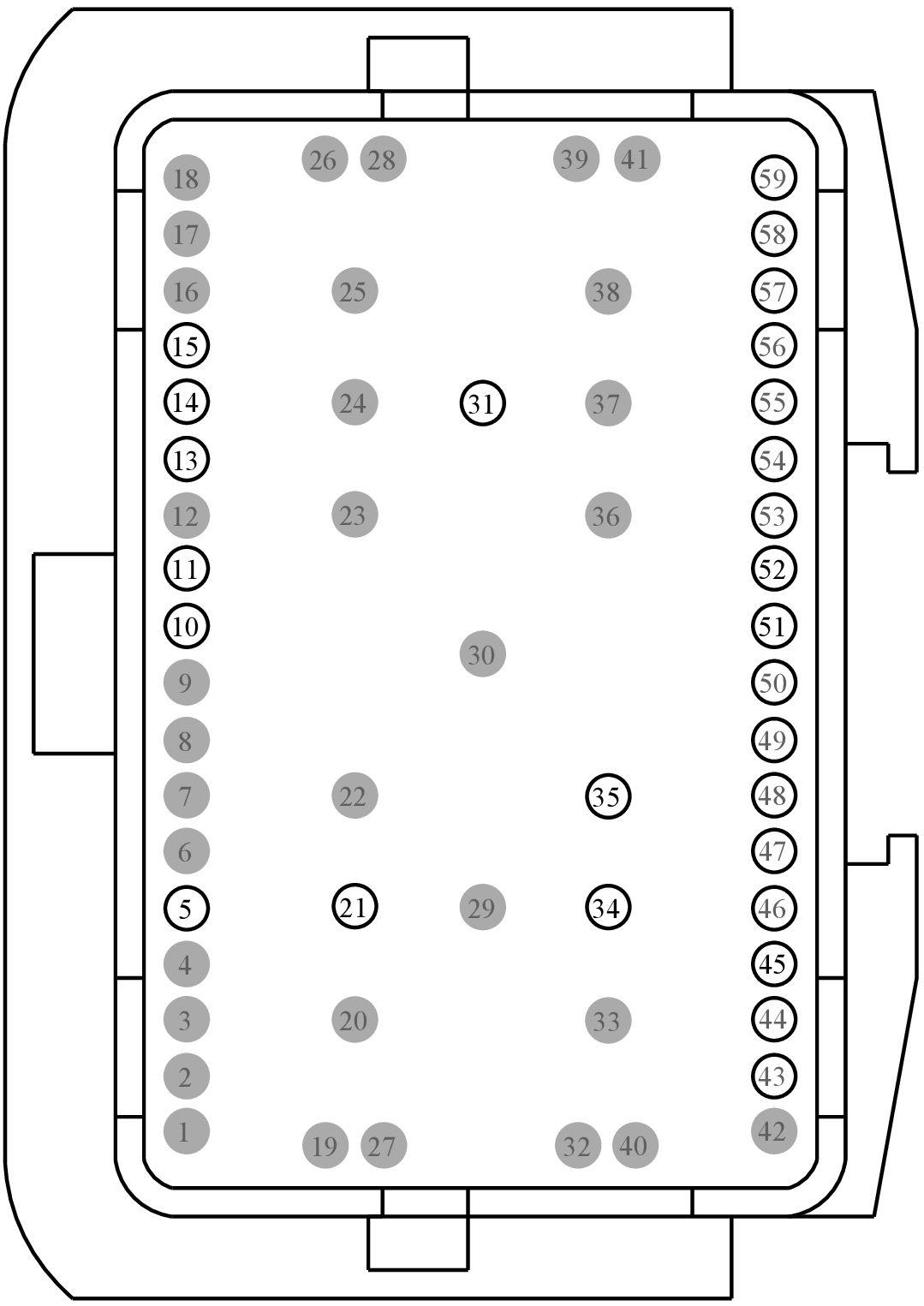

GFDWR99198Courtesy of FORD MOTOR COMPANY

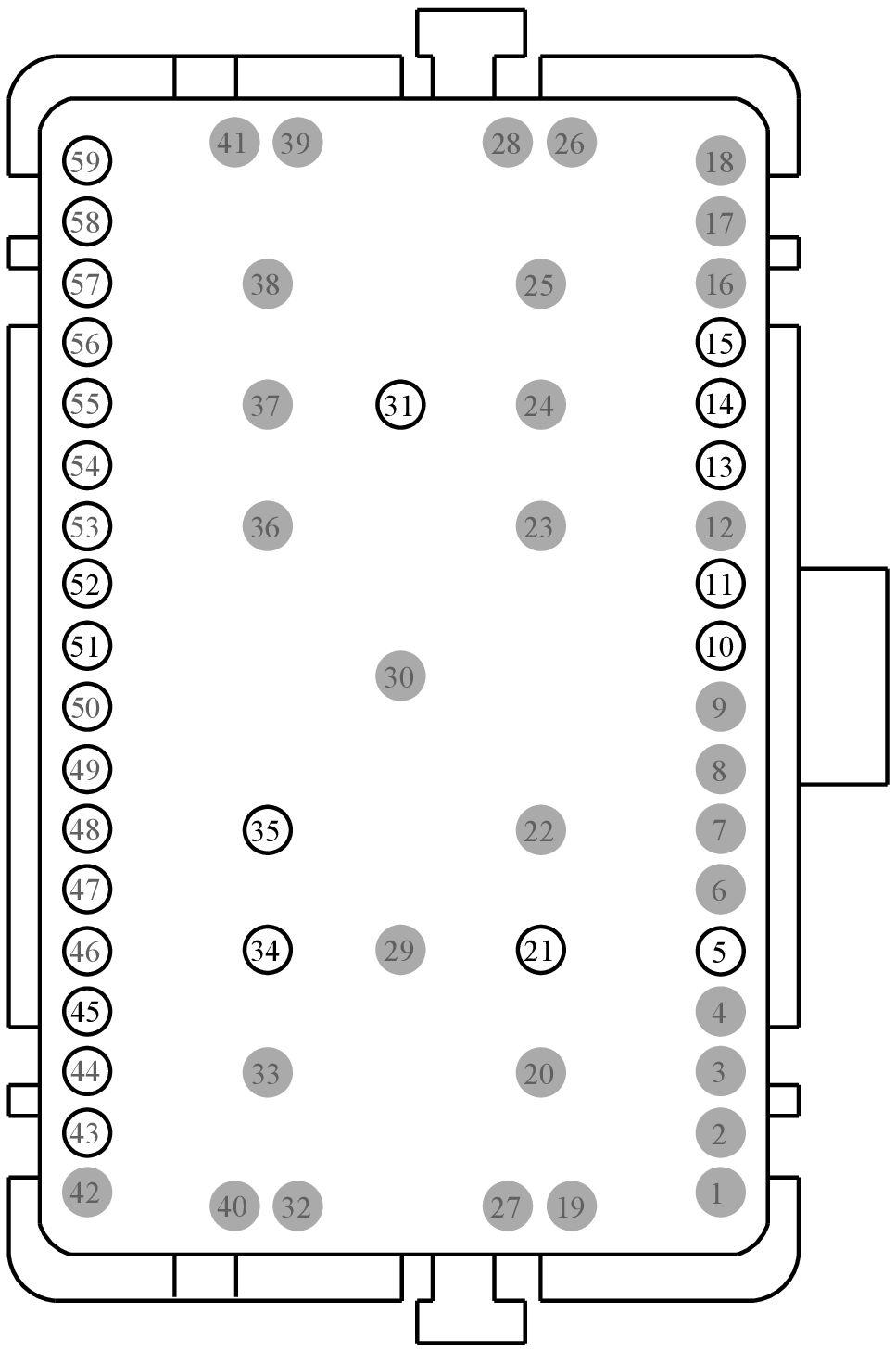

GFDWR99199Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14474-MA DU2Z-14474-BA 0.64
9U5T-14474-LA DU2Z-14474-BA 0.64
3F2T-14474-RA DU2Z-14474-BA 0.64
97BG-14474-BAA DU2Z-14474-EA 2.8
3M5T-14474-HAA DU2Z-14474-EA 2.8
97BG-14474-CBA JU2Z-14474-AB 6.3
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 * * N/A
2 * * N/A
3 * * N/A
4 * * N/A
5 CBX03 (BU-RD) 20 NA
6 * * N/A
7 * * N/A
8 * * N/A
9 * * N/A
10 VDB06 (GY-OG) 20 NA
11 VDB07 (VT-OG) 20 NA
12 * * N/A
13 CPP22 (GY-BN) 18 NA
14 CPP04 (GY) 18 NA
14 CPP04 (GY-OG) 18 NA
15 CPP18 (BN-VT) 20 NA
16 * * N/A
17 * * N/A
18 * * N/A
19 * * N/A
20 * * N/A
21 CBX04 (WH-RD) 16 NA
22 * * N/A
23 * * N/A
24 * * N/A
25 * * N/A
26 * * N/A
27 * * N/A
28 * * N/A
29 * * N/A
30 * * N/A
31 GD906 (BK-GY) 14 NA
32 * * N/A
33 CPP01 (WH-OG) 18 NA
34 CPP23 (VT-GN) 18 NA
34 CPP23 (VT-GY) 18 NA
35 CPP03 (GN-VT) 18 NA
36 * * N/A
37 * * N/A
38 CPP02 (BN) 18 NA
39 * * N/A
40 CPP09 (VT-OG) 20 NA
41 CPP10 (BN-BU) 20 NA
42 * * N/A
43 * * N/A
44 * * N/A
45 RPP07 (YE-GN) 20 NA
46 * * N/A
47 * * N/A
48 * * N/A
49 * * N/A
50 * * N/A
51 RPP06 (GN) 20 NA
51 RPS12 (YE-VT) 20 NA
52 GD905 (BK-GN) 20 NA
53 * * N/A
54 * * N/A
55 * * N/A
56 * * N/A
57 LPP06 (YE-BU) 20 NA
58 * * N/A
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 * * N/A
2 * * N/A
3 * * N/A
4 * * N/A
5 SBP02 (YE-RD) 20 9U5T-14474-MA
6 * * N/A
7 * * N/A
8 * * N/A
9 * * N/A
10 VDB06 (GY) 26 9U5T-14474-LA
10 VDB06 (GY-OG) 20 3F2T-14474-RA
11 VDB07 (VT) 26 9U5T-14474-LA
11 VDB07 (VT-OG) 20 3F2T-14474-RA
12 * * N/A
13 CPP22 (GY-BN) 20 9U5T-14474-MA
14 CPP04 (GY) 20 9U5T-14474-MA
15 VPP08 (WH) 20 9U5T-14474-MA
16 * * N/A
17 * * N/A
18 * * N/A
19 * * N/A
20 * * N/A
21 SBP02 (YE-RD) 20 97BG-14474-BAA
22 * * N/A
23 * * N/A
24 * * N/A
25 * * N/A
26 * * N/A
27 * * N/A
28 * * N/A
29 * * N/A
30 * * N/A
31 GD382 (BK-GY) 12 97BG-14474-CBA
32 * * N/A
33 * * N/A
34 CPP23 (VT) 20 97BG-14474-BAA
34 CPP23 (VT-GY) 20 3M5T-14474-HAA
35 CPP03 (GN-VT) 20 97BG-14474-BAA
35 CPP03 (VT) 20 3M5T-14474-HAA
36 * * N/A
37 * * N/A
38 * * N/A
39 * * N/A
40 * * N/A
41 * * N/A
42 * * N/A
43 * * N/A
44 * * N/A
45 VPP17 (VT-BN) 20 3F2T-14474-RA
46 * * N/A
47 * * N/A
48 * * N/A
49 * * N/A
50 * * N/A
51 CPP05 (WH-VT) 20 9U5T-14474-MA
52 GD382 (BK-GY) 20 9U5T-14474-MA
53 * * N/A
54 * * N/A
55 * * N/A
56 * * N/A
57 * * N/A
58 * * N/A
