Connector End View (C3051) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C3051	INLINE	2C05414A005			See Below

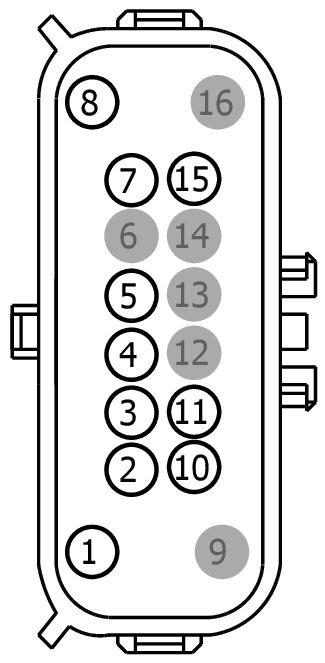

MALE

Harness

2C054

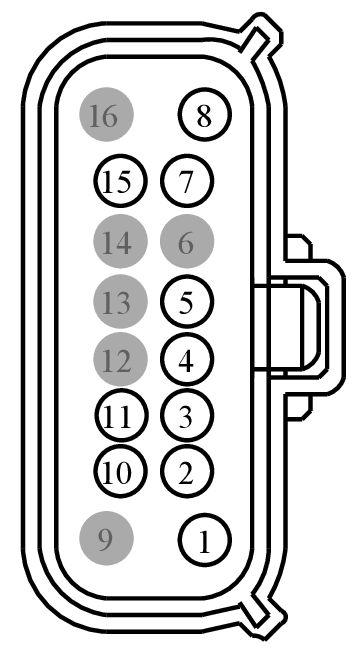

FEMALE

Harness

14A005

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
2L1T-14421-CA	EU2Z-14421-CA	1.5
1F1T-14421-JA	EU2Z-14421-FA	2.8
1F1T-14474-GA	DU2Z-14474-FA	2.8
BU5T-14421-HA	EU2Z-14421-CA	1.5
1F1T-14421-GA	EU2Z-14421-FA	2.8

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CCD06 (VT-GY)	18	1F1T-14421-GA
2	RCD06 (BU-BN)	18	2L1T-14421-CA
3	VCD13 (GN-VT)	18	2L1T-14421-CA
4	RCD23 (WH-BN)	18	2L1T-14421-CA
5	LCD23 (GN-OG)	18	2L1T-14421-CA
6	CCF21 (VT-WH)	18	2L1T-14421-CA
7	CCD05 (GN-BU)	18	2L1T-14421-CA
8	RCD05 (YE-BU)	18	1F1T-14421-GA
9	GD313 (BK-GN)	12	1F1T-14421-JA
10	RCD23 (WH-BN)	18	2L1T-14421-CA
11	LCD23 (GN-OG)	18	2L1T-14421-CA
12	CBB24 (VT-GN)	20	BU5T-14421-HA
13	RCF21 (WH-VT)	18	2L1T-14421-CA
13	VDB04 (WH-BU)	22	BU5T-14421-HA
14	VDB05 (WH)	22	BU5T-14421-HA
15	VCD12 (VT-WH)	18	2L1T-14421-CA

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CCD06 (VT-GY)	18	1F1T-14474-GA
2	RCD06 (BU-BN)	18	7C3T-14474-DA
3	VCD13 (GN-VT)	18	7C3T-14474-DA
4	RCD23 (WH-BN)	18	7C3T-14474-DA
5	LCD23 (GN-OG)	18	7C3T-14474-DA
6	*	*	N/A
7	CCD05 (GN-BU)	18	7C3T-14474-DA
8	RCD05 (YE-BU)	18	1F1T-14474-GA
9	*	*	N/A
10	RCD23 (WH-BN)	18	7C3T-14474-DA
11	LCD23 (GN-OG)	18	7C3T-14474-DA
12	*	*	N/A
13	*	*	N/A
14	*	*	N/A
15	VCD12 (VT-WH)	18	7C3T-14474-DA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1393

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-KB

Gauge:

14 18

Pin material:

Tin & Silver

Cavities:

16

Vehicle Uses:

• Connector - Inline
• For Mating Connector Refer To WPT-1142

Pigtail Kit Part Number WPT-1491

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-JC

Gauge:

14 16

Pin material:

Tin & Silver

Cavities:

16

Vehicle Uses:

• Connector - Inline
• Switch - Turn Signal
