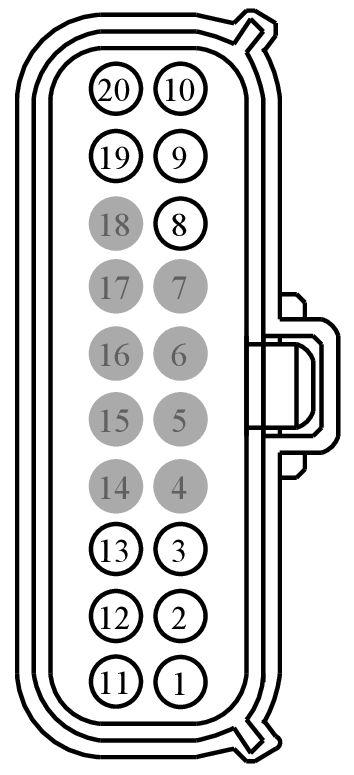

Connector End View (C3047B) - POLICE WIG WAG CONTROL MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3047B	POLICE WIG WAG CONTROL MODULE	none	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLS51 (GN)	18	CTRL MOD. - STOP/TURN LEFT OUTBOARD	N/A
2	CLS28 (WH-BU)	20	CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC)	N/A
3	GD347 (BK-VT)	14	GROUND - PILLAR C OR QUARTER PANEL LEFT	N/A
4	- ()	*	Not Used	N/A
5	- ()	*	Not Used	N/A
6	- ()	*	Not Used	N/A
7	- ()	*	Not Used	N/A
8	SBP20 (BU-RD)	18	FUSE - 20 OR CIRCUIT BREAKER	N/A
9	CLS53 (GY)	18	CTRL MOD. - STOP/TURN RIGHT OUTBOARD	N/A
10	CLS28 (BU-WH)	20	CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC)	N/A
11	CLS51 (WH-GN)	18	CTRL MOD. - STOP/TURN LEFT OUTBOARD	N/A
12	CLS28 (WH)	20	CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC)	N/A
13	CAP12 (VT-OG)	18	POLICE - FLASHER REAR LEFT	N/A
14	- ()	*	Not Used	N/A
15	- ()	*	Not Used	N/A
16	- ()	*	Not Used	N/A
17	- ()	*	Not Used	N/A
18	- ()	*	Not Used	N/A
19	CLS53 (GY-VT)	18	CTRL MOD. - STOP/TURN RIGHT OUTBOARD	N/A
20	CLS28 (BU)	20	CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-889

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-GA

Gauge:

16

Pin material:

Silver

Cavities:

20

Vehicle Uses:

• Connector - Inline
• For Mating Connector Refer To WPT-890
