Connector End View (C2982B) - AUDIO FRONT CONTROL MODULE (ACM)

Connector: Description Color Harness Base Part # Service Pigtail
C2619A AUDIO FRONT CONTROL MODULE (ACM) none 14401 14489 Not Available

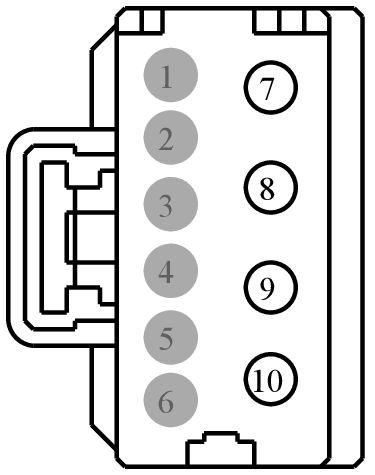

GFDWR99180Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CBP33 (WH-BN) 10 FUSE - 33 OR CIRCUIT BREAKER N/A
2 RMED4 (GN-BN) 18 CTRL MOD. - AUDIO HEAD UNIT # SPEAKER RIGHT FRONT FULL RANGE - N/A
3 VMED4 (YE-OG) 18 CTRL MOD. - AUDIO HEAD UNIT # SPEAKER RIGHT FRONT FULL RANGE + N/A
4 GD215 (BK-GY) 14 GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT N/A
5 RME79 (BN-GN) 18 CTRL MOD. - AUDIO HEAD UNIT # SPEAKER LEFT REAR FULL RANGE - N/A
6 VME79 (GY-VT) 18 CTRL MOD. - AUDIO HEAD UNIT # SPEAKER LEFT REAR FULL RANGE + N/A
7 RMED3 (GY-BN) 18 CTRL MOD. - AUDIO HEAD UNIT # SPEAKER LEFT FRONT FULL RANGE - N/A
8 VMED3 (BU) 18 CTRL MOD. - AUDIO HEAD UNIT # SPEAKER LEFT FRONT FULL RANGE + N/A
9 RME78 (GY) 18 CTRL MOD. - AUDIO HEAD UNIT # SPEAKER RIGHT REAR FULL RANGE - N/A
10 VME78 (GN-VT) 18 CTRL MOD. - AUDIO HEAD UNIT # SPEAKER RIGHT REAR FULL RANGE + N/A
11 - () * Not Used N/A
12 - () * Not Used N/A
13 LME89 (YE-BU) 22 CTRL MOD. - MEDIA CONNECTIVITY POWER N/A
14 VMP19 (WH-GN) 22 CAMERA - PARKING AID REAR VIDEO + N/A
15 VMM23 (BN-VT) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL + N/A
16 RMM23 (WH-GN) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL - N/A
17 - () * Not Used N/A
18 CME13 (YE-OG) 22 CTRL MOD. - POWER ANTENNA MOTOR N/A
19 VDB29 (GN) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH N/A
20 - () * Not Used N/A
21 - () * Not Used N/A
22 - () * Not Used N/A
23 - () * Not Used N/A
24 DMP19 (*) 20 CAMERA - PARKING AID REAR VIDEO D N/A
25 RMP19 (BN-VT) 22 CAMERA - PARKING AID REAR VIDEO - N/A
26 VMM23 (GY-BN) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL + N/A
27 RMM23 (WH) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL - N/A
28 - () * Not Used N/A
29 VMEM8 (BK) 22 #N/A N/A
30 VDB30 (WH) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW N/A
31 - () * Not Used N/A
32 - () * Not Used N/A
