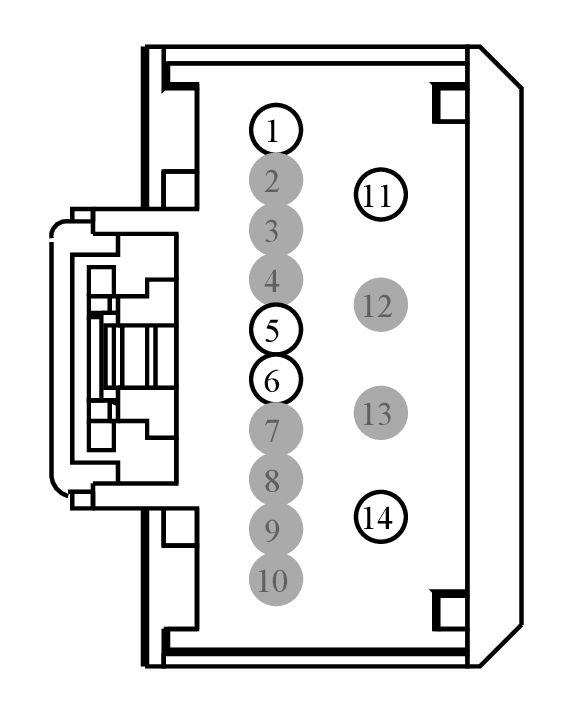

Connector End View (C2982A) - SUBWOOFER AMPLIFIER

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2982B	SUBWOOFER AMPLIFIER	14A005/14B644			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-BBA	DU2Z-14474-EA	2.8
1F1T-14474-BA	DU2Z-14474-EA	2.8
1F1T-14474-LA	DU2Z-14474-EA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	VME72 (WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 2 +	Fusion	1F1T-14474-BA
7	VME72 (WH)	22	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 2 +	MKZ	1F1T-14474-LA
8	RME72 (BU-GN)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 2 -	MKZ	97BG-14474-BBA
8	RME72 (GN-BU)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 2 -	PHEV	1F1T-14474-BA
8	RME72 (BU-GN)	22	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 2 -	Fusion	1F1T-14474-LA
9	VME73 (BN-WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR SUBWOOFER 2 +	Fusion	97BG-14474-BBA
9	VME73 (WH-BN)	22	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR SUBWOOFER 2 +	MKZ	1F1T-14474-LA
10	RME73 (VT-OG)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR SUBWOOFER 2 -	Fusion	1F1T-14474-BA
10	RME73 (VT-OG)	22	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR SUBWOOFER 2 -	MKZ	1F1T-14474-LA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1354

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-ADA

Gauge:

14 16

Pin material:

Tin & Silver

Cavities:

10

Vehicle Uses:

• Radio - Amplifier
