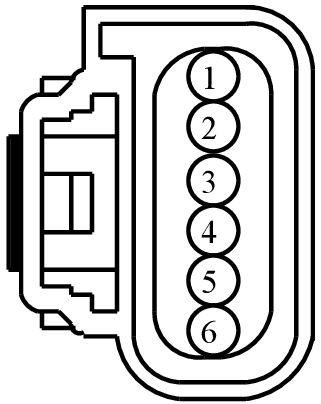

Connector End View (C2619D) - COMPACT DISC PLAYER
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C2611 | COMPACT DISC PLAYER | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| *3F2T-14474-RA | Not Available | |
| 9U5T-14474-MA | DU2Z-14474-BA | 0.64 |
| 9U5T-14474-NA | DU2Z-14474-BA | 0.64 |
| 9U5T-14474-LA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBP33 (WH-BN) | 18 | FUSE - 33 OR CIRCUIT BREAKER | 9U5T-14474-MA | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | VMEB0 (GN) | 26 | CTRL MOD. - REMOTE CD # AUDIO RIGHT + | 9U5T-14474-NA | ||||
| 4 | RMEB0 (BN) | 26 | CTRL MOD. - REMOTE CD # AUDIO RIGHT - | 9U5T-14474-NA | ||||
| 5 | DMEB0 (*) | 20 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 D | *3F2T-14474-RA | ||||
| 6 | VDB29 (GN) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH | 9U5T-14474-LA | ||||
| 7 | VDB30 (WH) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW | 9U5T-14474-LA | ||||
| 8 | VMEA9 (BU) | 26 | CTRL MOD. - REMOTE CD # AUDIO LEFT + | 9U5T-14474-NA | ||||
| 9 | RMEA9 (VT) | 26 | CTRL MOD. - REMOTE CD # AUDIO LEFT - | 9U5T-14474-NA | ||||
| 10 | GD215 (BK-GY) | 18 | GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT | 9U5T-14474-MA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-934
Service Part Number:
3U2Z-14S411-LSB
Gauge:
18
Pin material:
Silver
Cavities:
10
Vehicle Uses:
- Lamp - Headlamp Switch
- Module - Lighting Control
- Module - Reverse Park Aid (RPA)
- Module - Seat Memory
- Radio
- Switch - Headlamp
- Switch - Headlamp / Foglamp
- Switch - Multifunction
- Switch - Power Window - Driver
- Switch - Turn Signal
Pigtail Kit Part Number WPT-1592
Service Part Number:
3U2Z-14S411-LSC
Gauge:
18
Pin material:
Silver
Cavities:
10
Vehicle Uses:
- Connector - Inline
- Control - Navigation Display
- DVD Player
- Mirror - Sideview
- Mirror - Sideview / Heated
- Module - Front Park Aid
- Module - Lighting Control
- Module - Reverse Park Aid (RPA)
- Module - Seat Memory
- Monitor - Video/DVD
- Radio
- Switch - 4x4 Control
- Switch - Headlamp
- Switch - Headlamp / Foglamp
- Switch - Heated Seat - LH - Front
- Switch - Heated Seat - RH - Front
- Switch - Multifunction
- Switch - Power Window - Driver
- Switch - Turn Signal
