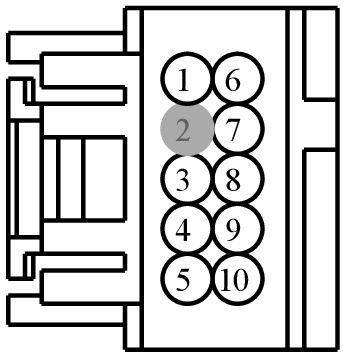

Connector End View (C2611) - LUGGAGE COMPARTMENT OPEN/CLOSE SWITCH, FRONT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2610	LUGGAGE COMPARTMENT OPEN/CLOSE SWITCH, FRONT	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA	DU2Z-14474-BA	0.64
9U5T-14474-NA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	GD216 (BK-VT)	20	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	9U5T-14474-LA
3	VLN04 (VT)	26	CTRL MOD. - IP/SWITCH ILLUMINATION	9U5T-14474-NA
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	CPR63 (GY-YE)	22	SWITCH - POWER LIFTGATE/DECKLID # OPEN/CLOSE	9U5T-14474-LA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1164

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-JB

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Switch - Deck Lid / Hatch Release
• Switch - Deck Lid / Lift Gate Ajar
• Switch - Hazard Warning
• Switch - Heated Back Light (Rear Defrost)
• Switch - Power Liftgate
• Switch - Reverse Park Aid
• Switch - Start/Stop
• Switch - Sunshade
• Switch - Traction Control
