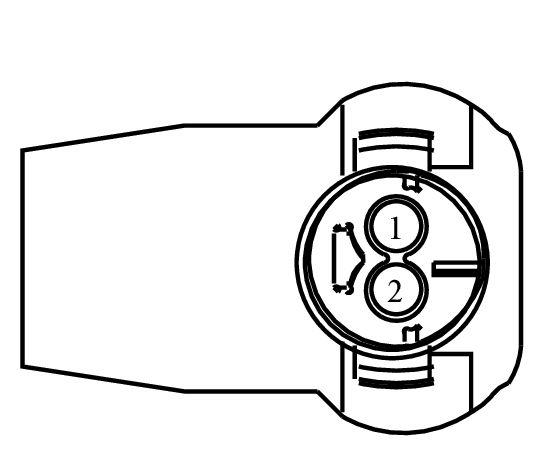

Connector End View (C2607) - INLINE
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C2606 | INLINE | PIA14K147 | See Below | |||||
MALE
Harness
PIA
FEMALE
Harness
14K147
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CRH02 (BU) | * | N/A | |||
| 2 | LX105 (BK-BU) | * | N/A | |||
| 3 | RX101 (BU-BK) | * | N/A | |||
| 4 | RX102 (BU-RD) | * | N/A | |||
| 5 | VLN04 (BN) | * | N/A | |||
| 6 | RRH02 (PK) | * | N/A | |||
| 7 | * | * | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CRH02 (BU) | * | N/A | |||
| 2 | LX105 (BK-BU) | * | N/A | |||
| 3 | RX101 (BU-BK) | * | N/A | |||
| 4 | RX102 (BU-RD) | * | N/A | |||
| 5 | VLN04 (BN) | * | N/A | |||
| 6 | RRH02 (PK) | * | N/A | |||
| 7 | * | * | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1219
Service Part Number:
3U2Z-14S411-DAAC
Gauge:
18
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Switch - Ambient Lighting Dimmer
- Switch - Door Lock (LH)
- Switch - Message Center
- Switch - Moon Roof/Sun Roof
- Switch - Seat Memory
