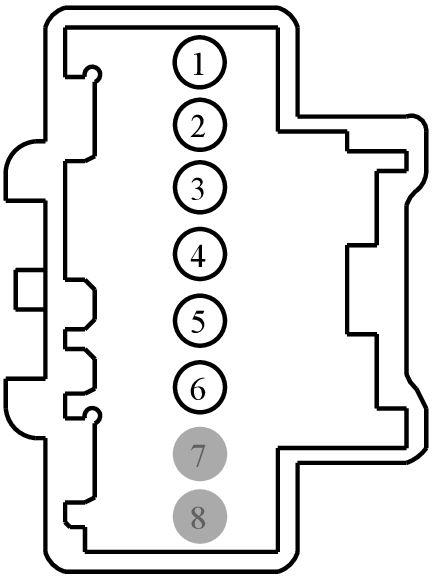

Connector End View (C2606) - ADJUSTABLE STEERING COLUMN MOTOR, TELESCOPE
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C2601 | ADJUSTABLE STEERING COLUMN MOTOR, TELESCOPE | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3S7T-14474-CA | Not Available | |
| 9U5T-14474-DA | DU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPP22 (GY-BN) | 20 | CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD | 3S7T-14474-CA | ||||
| 2 | VPP17 (VT-BN) | 20 | SENSOR - ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD) | 9U5T-14474-DA | ||||
| 3 | CPP03 (GN-VT) | 20 | CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE REARWARD | 3S7T-14474-CA | ||||
| 4 | CPP05 (WH-VT) | 20 | CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON | 9U5T-14474-DA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1311
Service Part Number:
CU2Z-14S411-BAA
Gauge:
20
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Motor - Seat Height (Front)
- Motor - Seat Recline
