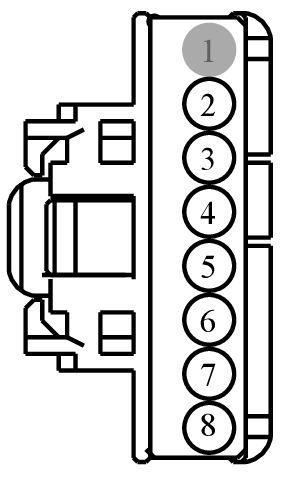

Connector End View (C2490) - AUTO-START-STOP DEACTIVATION SWITCH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C2489 | AUTO-START-STOP DEACTIVATION SWITCH | 14B560 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-LA | DU2Z-14474-BA | 0.64 |
| 9U5T-14474-NA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE469 (BN-WH) | 22 | CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR | N/A | ||||
| 2 | CE469 (BN-WH) | 22 | SWITCH - HILL DESCENT CONTROL | Start/Stop system | 9U5T-14474-LA | |||
| 2 | CET59 (GY-VT) | 22 | SWITCH - HILL DESCENT CONTROL | PHEV | N/A | |||
| 2 | CMP32 (GN) | 22 | SWITCH - ACTIVE PARK ASSIST (AUTOPARK) | Without grade assist | N/A | |||
| 3 | GD214 (BK) | 26 | GROUND - INSTRUMENT PANEL STRUCTURE | 9U5T-14474-NA | ||||
| 4 | CYT30 (GY-VT) | 22 | SWITCH - ECON CONTROL (ECO) + | 9U5T-14474-LA | ||||
| 5 | VLN04 (GY-VT) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | 9U5T-14474-LA | ||||
| 6 | * | * | Not Used | N/A | ||||
