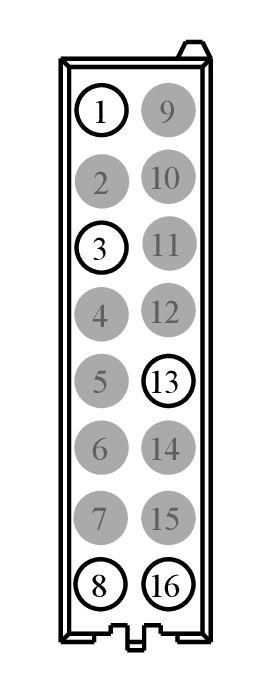

Connector End View (C2482) - GLOBAL POSITIONING SYSTEM MODULE (GPSM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2482	GLOBAL POSITIONING SYSTEM MODULE (GPSM)	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
96AG-14474-RSA	FU2Z-14474-AA	0.64
AU5T-14474-HA	FU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP17 (RD)	22	FUSE - 17 OR CIRCUIT BREAKER	96AG-14474-RSA
2	*	*	Not Used	N/A
3	CE436 (VT-OG)	22	CTRL MOD. -WAKE UP PCM	96AG-14474-RSA
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	VDB25 (GN)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	AU5T-14474-HA
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	GD216 (BK-VT)	20	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	96AG-14474-RSA
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	VDB26 (GY)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	AU5T-14474-HA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1189

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-ZA

Gauge:

18

Pin material:

Tin (greased)

Cavities:

16

Vehicle Uses:

• Module - Reverse Park Aid (RPA)
