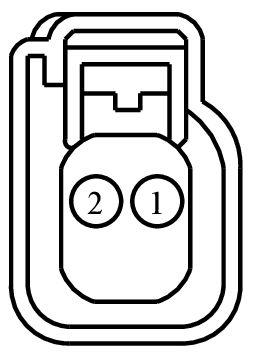

Connector End View (C2470) - INSTRUMENT PANEL SPEAKER, CENTER

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2470	INSTRUMENT PANEL SPEAKER, CENTER	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VME06 (GN)	18	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT MID RANGE 2 +	97BG-14474-AEA
2	RME06 (GY-YE)	18	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT MID RANGE 2 -	High audio	97BG-14474-AEA
2	RME06 (OG-GY)	18	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT MID RANGE 2 -	Mid audio	97BG-14474-AEA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1052

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JLB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• A/C Compressor Clutch
• Actuator - Door Lock
• Actuator - Door Lock - LH - Front
• Actuator - Door Lock - LH - Rear
• Actuator - Door Lock - LH - Sliding Door
• Actuator - Door Lock - RH - Front
• Actuator - Door Lock - RH - Rear
• Actuator - Door Lock - RH - Sliding Door
• Actuator - Liftgate Glass
• Lamp - Headlamp - Low Beam
• Lamp - License
• Lamp - Side Marker
• Motor - Power Window - LH - Rear
• Pump - Fuel (External)
• Sensor - Side Impact
• Solenoid - Brake Shift Park Interlock
• Speaker - Door (front)
• Speaker - Door (rear)
• Speaker - Front
• Speaker - Rear
• Speaker - Tweeter - LH - Front
• Speaker - Tweeter - LH - Rear
• Speaker - Tweeter - RH - Front
• Speaker - Tweeter - RH - Rear
