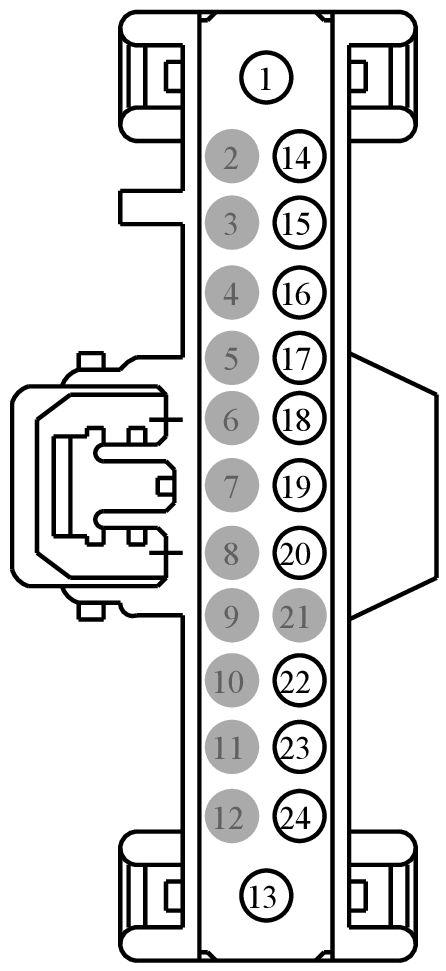

Connector End View (C2431) - GATEWAY MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2431	GATEWAY MODULE	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-BAA	DU2Z-14474-EA	2.8
8U5T-14474-BA	DU2Z-14474-CA	0.64
9U5T-14474-XA	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD215 (BK-GY)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	97BG-14474-BAA
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	SBP15 (WH-RD)	22	FUSE - 15 OR CIRCUIT BREAKER	MKZ	97BG-14474-BAA
13	SBP15 (WH-RD)	20	FUSE - 15 OR CIRCUIT BREAKER	Fusion	97BG-14474-BAA
14	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE	8U5T-14474-BA
15	VDB30 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	MKZ	8U5T-14474-BA
15	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	Fusion	8U5T-14474-BA
16	VDB29 (GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	MKZ	8U5T-14474-BA
16	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	Fusion	8U5T-14474-BA
17	VDB26 (GY)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	9U5T-14474-XA
18	VDB25 (GN)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	9U5T-14474-XA
19	VDB05 (WH)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	9U5T-14474-XA
20	VDB04 (BU)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	9U5T-14474-XA
21	*	*	Not Used	N/A
22	VDB07 (VT)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	MKZ	8U5T-14474-BA
22	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	Fusion	8U5T-14474-BA
23	VDB06 (GY)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	MKZ	8U5T-14474-BA
23	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	Fusion	8U5T-14474-BA
24	SBP13 (GY-RD)	22	FUSE - 13 OR CIRCUIT BREAKER	8U5T-14474-BA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1533

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ALB

Gauge:

14 20

Pin material:

Tin & Silver

Cavities:

24

Vehicle Uses:

• DVD Player
• Module - Audio Control
• Module - Body Control
• Module - Fuel and Damper Control
• Module - Gateway
• Radio
• Test Connector - Diagnostic

Pigtail Kit Part Number WPT-1440

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ALA

Gauge:

14 20

Pin material:

Tin & Silver

Cavities:

24

Vehicle Uses:

• DVD Player
• Module - Audio Control
• Module - Body Control
• Module Gateway
• Radio
• Test Connector - Diagnostic
