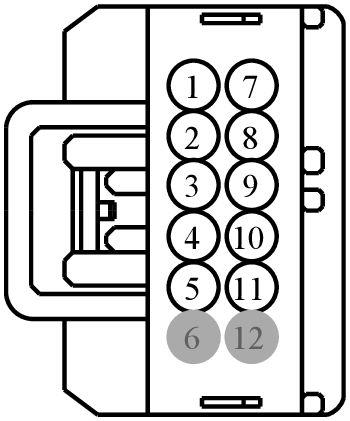

Connector End View (C2414D) - STEERING COLUMN CONTROL MODULE (SCCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2414D	STEERING COLUMN CONTROL MODULE (SCCM)	14401			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-NA	DU2Z-14474-BA	0.64
9U5T-14474-MA	DU2Z-14474-BA	0.64
9U5T-14474-LA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	* (*)	*	CTRL MOD. - SWITCH HORN	9U5T-14474-NA
2	* (*)	*	CTRL MOD. - FRONT WIPER HIGH	9U5T-14474-MA
3	* (*)	*	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	9U5T-14474-LA
3	* (*)	*	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	9U5T-14474-NA
4	* (*)	*	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	9U5T-14474-LA
4	* (*)	*	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	9U5T-14474-NA
5	* (*)	*	GROUND - INSTRUMENT PANEL STRUCTURE	9U5T-14474-LA
6	*	*	Not Used	N/A
7	* (*)	*	FUSE - 13 OR CIRCUIT BREAKER	9U5T-14474-LA
8	* (*)	*	CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 [OBSOLETE - REPLACED BY VX107]	9U5T-14474-NA
9	* (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)	9U5T-14474-LA
10	* (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)	9U5T-14474-LA
11	* (*)	*	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	9U5T-14474-LA
12	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-930

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-DA

Gauge:

18

Pin material:

Silver

Cavities:

12

Vehicle Uses:

• Module - Climate Control Seat
• Module - Heated Seat (Rear)
