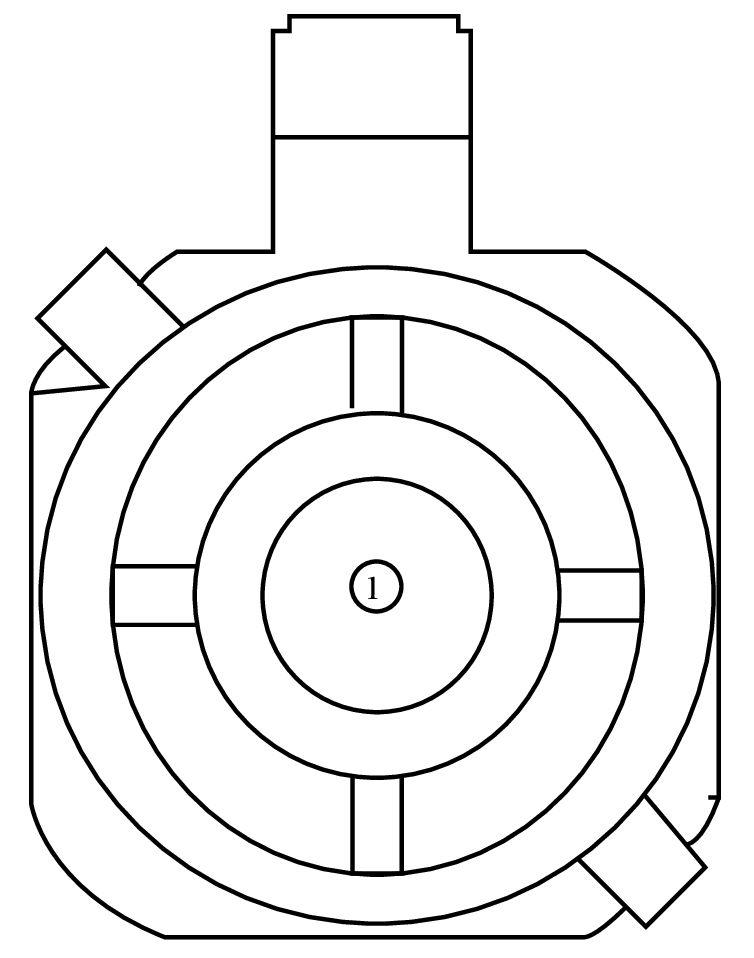

Connector End View (C2383E) - SYNC MODULE [APIM]

Connector: Description Color Harness Base Part # Service Pigtail
C2383E SYNC MODULE [APIM] 14401 #N/A Not Available
GFDWR99137Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * (*) * GPS N/A
