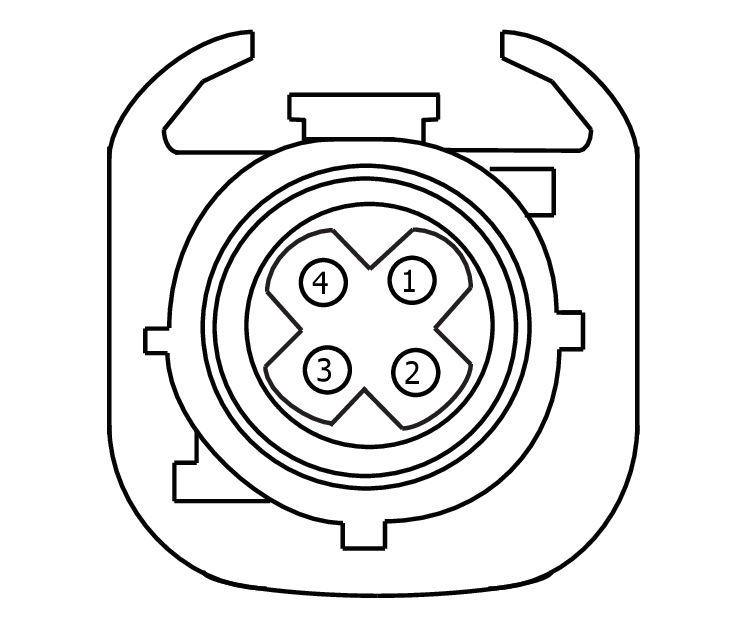

Connector End View (C2383D) - SYNC MODULE [APIM]
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C2383D | SYNC MODULE [APIM] | BLUE | 14401 | #N/A | Not Available |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * (*) | * | COMMUNICATION + | N/A | ||||
| 2 | * (*) | * | POWER | N/A | ||||
| 3 | * (*) | * | COMMUNICATION - | N/A | ||||
| 4 | * (*) | * | GROUND | N/A | ||||
