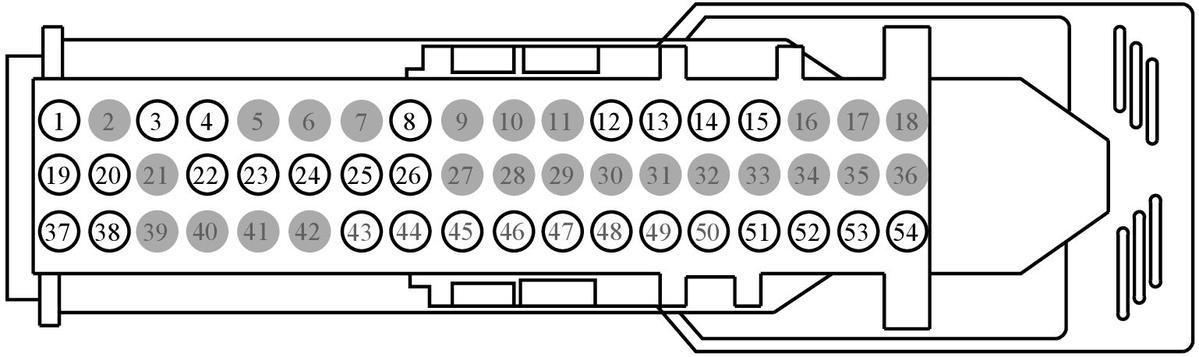

Connector End View (C2383A) - SYNC MODULE [APIM]

Connector: Description Color Harness Base Part # Service Pigtail
C2383A SYNC MODULE [APIM] 14401 #N/A Not Available
GFDWR99138Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
*9U5T-14474-DA Not Available
FU5T-14474-LA DU2Z-14474-AA 0.64
9U5T-14474-YA DU2Z-14474-AA 0.64
9U5T-14474-DA DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 SBP32 (BN-RD) 20 FUSE - 32 OR CIRCUIT BREAKER 9U5T-14474-DA
2 * * Not Used N/A
3 VME80 (VT-GN) 22 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) 9U5T-14474-DA
4 RME80 (BU-GY) 22 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) 9U5T-14474-DA
5 * * Not Used N/A
6 * * Not Used N/A
7 * * Not Used N/A
8 LME89 (YE-BU) 22 CTRL MOD. - MEDIA CONNECTIVITY POWER 9U5T-14474-DA
9 * * Not Used N/A
10 * * Not Used N/A
11 * * Not Used N/A
12 VMM23 (BN) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL + 9U5T-14474-DA
13 RMM23 (WH) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL - 9U5T-14474-DA
14 VMP19 (WH-GN) 22 CAMERA - PARKING AID REAR VIDEO + 9U5T-14474-DA
15 RMP19 (BN-VT) 22 CAMERA - PARKING AID REAR VIDEO - 9U5T-14474-DA
16 * * Not Used N/A
17 * * Not Used N/A
18 * * Not Used N/A
19 VDB29 (GN) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH FU5T-14474-LA
20 VDB30 (WH) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW FU5T-14474-LA
21 * * Not Used N/A
22 DME52 (*) 20 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO D *9U5T-14474-DA
23 VME52 (BU) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT + 9U5T-14474-DA
24 RME52 (GY-OG) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT - 9U5T-14474-DA
25 VME53 (VT-GN) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT + 9U5T-14474-DA
26 RME53 (BN-WH) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT - 9U5T-14474-DA
27 * * Not Used N/A
28 * * Not Used N/A
29 * * Not Used N/A
30 * * Not Used N/A
31 * * Not Used N/A
32 * * Not Used N/A
33 * * Not Used N/A
34 * * Not Used N/A
35 * * Not Used N/A
36 * * Not Used N/A
37 GD215 (BK-GY) 20 GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT 9U5T-14474-DA
38 RME89 (WH-BU) 22 CTRL MOD. - MEDIA CONNECTIVITY GROUND 9U5T-14474-DA
39 * * Not Used N/A
40 * * Not Used N/A
41 * * Not Used N/A
42 * * Not Used N/A
43 * * Not Used N/A
44 * * Not Used N/A
45 * * Not Used N/A
46 * * Not Used N/A
47 * * Not Used N/A
48 * * Not Used N/A
49 * * Not Used N/A
50 * * Not Used N/A
51 VME90 (GY-BU) 22 CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (+) (SDL-H) 9U5T-14474-YA
52 VME91 (WH-BN) 22 CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (-) (SDL-L) 9U5T-14474-YA
53 VDB04 (BU) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH FU5T-14474-LA
54 VDB05 (WH) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW FU5T-14474-LA
