Connector End View (C2383) - SYNC MODULE [APIM]

Connector: Description Color Harness Base Part # Service Pigtail
C2383 SYNC MODULE [APIM] none 14401 14489 Not Available

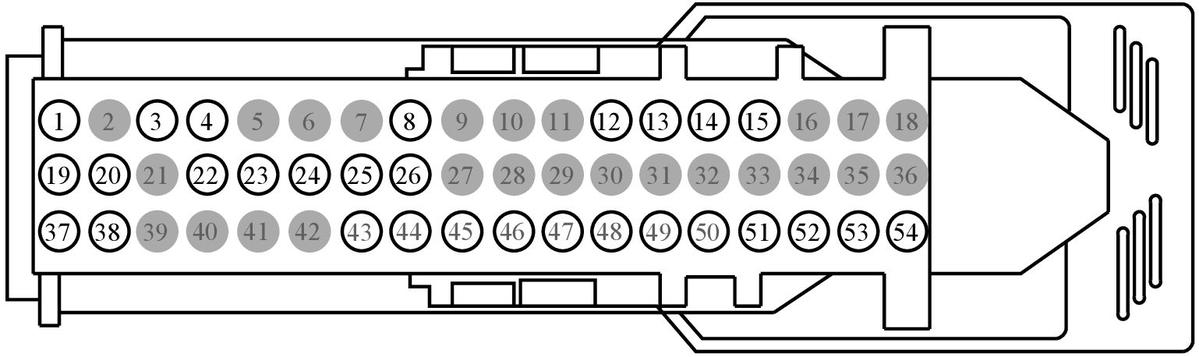

GFDWR99136Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 SBP32 (VT-RD) 20 FUSE - 32 OR CIRCUIT BREAKER N/A
2 - () * Not Used N/A
3 VME80 (GY-BU) 22 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) N/A
4 RME80 (GN-VT) 22 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) N/A
5 - () * Not Used N/A
6 - () * Not Used N/A
7 - () * Not Used N/A
8 LME89 (YE-BU) 22 CTRL MOD. - MEDIA CONNECTIVITY POWER N/A
9 - () * Not Used N/A
10 - () * Not Used N/A
11 - () * Not Used N/A
12 VMM23 (BN-VT) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL + N/A
13 RMM23 (WH-GN) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL - N/A
14 VMP19 (WH-GN) 22 CAMERA - PARKING AID REAR VIDEO + N/A
15 RMP19 (BN-VT) 22 CAMERA - PARKING AID REAR VIDEO - N/A
16 - () * Not Used N/A
17 - () * Not Used N/A
18 - () * Not Used N/A
19 VDB29 (GN) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH N/A
20 VDB30 (WH) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW N/A
21 - () * Not Used N/A
22 DME52 (*) 20 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] D N/A
23 VME52 (BU) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT + N/A
24 RME52 (GY-OG) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT - N/A
25 VME53 (VT) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT + N/A
26 RME53 (BN-WH) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT - N/A
27 - () * Not Used N/A
28 - () * Not Used N/A
29 - () * Not Used N/A
30 - () * Not Used N/A
31 - () * Not Used N/A
32 - () * Not Used N/A
33 - () * Not Used N/A
34 - () * Not Used N/A
35 - () * Not Used N/A
36 - () * Not Used N/A
37 GD215 (BK-GY) 20 GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT N/A
38 RME89 (WH-BU) 22 CTRL MOD. - MEDIA CONNECTIVITY GROUND N/A
39 - () * Not Used N/A
40 - () * Not Used N/A
41 - () * Not Used N/A
42 - () * Not Used N/A
43 - () * Not Used N/A
44 - () * Not Used N/A
45 - () * Not Used N/A
46 - () * Not Used N/A
47 - () * Not Used N/A
48 - () * Not Used N/A
49 - () * Not Used N/A
50 - () * Not Used N/A
51 VME90 (GY) 26 CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (+) (SDL-H) N/A
52 VME91 (WH) 26 CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (-) (SDL-L) N/A
53 VDB04 (BU) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH N/A
54 VDB05 (WH) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW N/A
