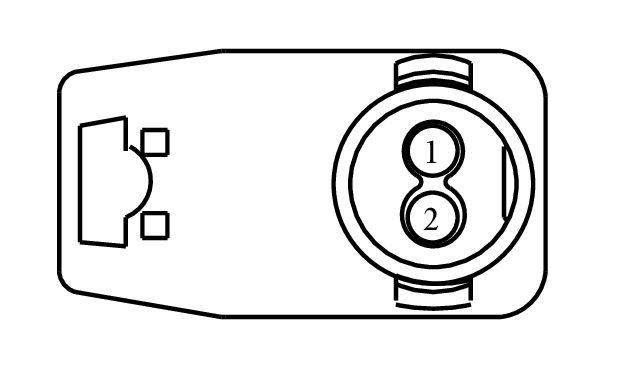

Connector End View (C2351B) - PASSENGER AIRBAG
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C2351B | PASSENGER AIRBAG | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR104 (YE-GY) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 2 + | NA | ||||
| 2 | RR104 (WH-BU) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 2 - | NA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1467
Service Part Number:
BU2Z-14S411-BKB
Gauge:
20
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses:
- Pretensioner - Seat Belt (Driver)
- Pretensioner - Seat Belt (Passenger)
- Squib - Airbag (Driver)
- Squib - Airbag (Passenger)
Pigtail Kit Part Number WPT-1227
Service Part Number:
BU2Z-14S411-BKA
Gauge:
20
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses:
- Sensor - Side Impact
- Squib - Airbag (Driver)
- Squib - Airbag (Passenger)
