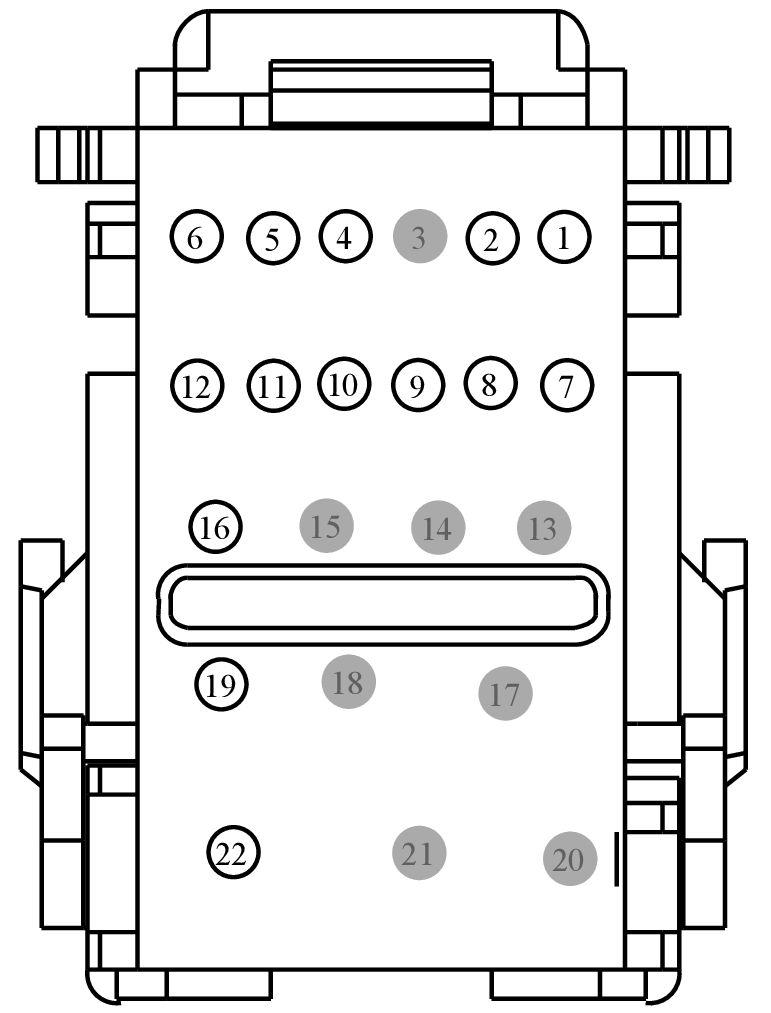

Connector End View (C2280H) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280H	BODY CONTROL MODULE (BCM)	14401			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-UA	DU2Z-14474-DA	1.5
F8VB-14474-AA	EU2Z-14474-AB	2.8
F8VB-14474-BA	EU2Z-14474-AA	2.8
XF2T-14474-CA	EU2Z-14474-AA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CCB08 (VT-WH)	22	SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN	BU5T-14474-UA
2	CBP23 (BU-OG)	22	FUSE - 23 OR CIRCUIT BREAKER	MKZ	BU5T-14474-UA
2	CBP23 (BN-YE)	22	FUSE - 23 OR CIRCUIT BREAKER	Fusion	BU5T-14474-UA
3	*	*	Not Used	N/A
4	CBP35 (YE-GY)	18	FUSE - 35 OR CIRCUIT BREAKER	7C3T-14474-DA
5	CBP20 (YE-VT)	22	FUSE - 20 OR CIRCUIT BREAKER	BU5T-14474-UA
6	CBP21 (BU-GY)	22	FUSE - 21 OR CIRCUIT BREAKER	BU5T-14474-UA
7	CBP35 (YE-GY)	18	FUSE - 35 OR CIRCUIT BREAKER	7C3T-14474-DA
8	SBP13 (GY-RD)	22	FUSE - 13 OR CIRCUIT BREAKER	BU5T-14474-UA
9	SBP32 (BN-RD)	20	FUSE - 32 OR CIRCUIT BREAKER	MKZ	BU5T-14474-UA
9	SBP32 (VT-RD)	20	FUSE - 32 OR CIRCUIT BREAKER	Fusion	BU5T-14474-UA
10	SBP12 (GN-RD)	20	FUSE - 12 OR CIRCUIT BREAKER	BU5T-14474-UA
11	SBP17 (RD)	22	FUSE - 17 OR CIRCUIT BREAKER	BU5T-14474-UA
12	SBP18 (GY-OG)	18	FUSE - 18 OR CIRCUIT BREAKER	MKZ	7C3T-14474-DA
12	SBP18 (YE-RD)	22	FUSE - 18 OR CIRCUIT BREAKER	Fusion	BU5T-14474-UA
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	CBP37 (WH)	14	FUSE - 37 OR CIRCUIT BREAKER	F8VB-14474-AA
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	SBP15 (WH-RD)	22	FUSE - 15 OR CIRCUIT BREAKER	MKZ	XF2T-14474-CA
19	SBP15 (WH-RD)	20	FUSE - 15 OR CIRCUIT BREAKER	Fusion	F8VB-14474-BA
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	CBP33 (WH-BN)	16	FUSE - 33 OR CIRCUIT BREAKER	MKZ	DU5T-14474-TA
22	CBP33 (WH-BN)	18	FUSE - 33 OR CIRCUIT BREAKER	Fusion	DU5T-14474-TA
