Connector End View (C2280G) - BODY CONTROL MODULE (BCM)

Connector: Description Color Harness Base Part # Service Pigtail
C2280G BODY CONTROL MODULE (BCM) 14401 part# N/A Not Available

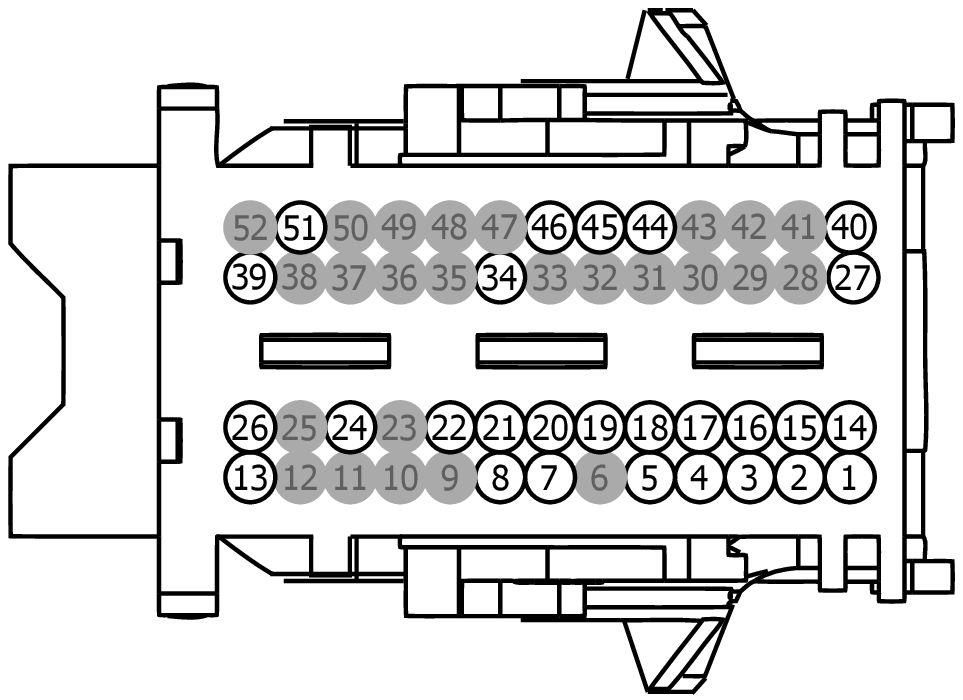

GFDWR99123Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14474-DA DU2Z-14474-AA 0.64
9U5T-14474-YA DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CPL45 (BN) 22 SWITCH - LIFTGATE/DECKLID RELEASE MKZ 9U5T-14474-DA
1 CPR63 (GY-YE) 22 SWITCH - POWER LIFTGATE/DECKLID # OPEN/CLOSE Fusion 9U5T-14474-DA
2 CLN34 (YE) 26 CTRL MOD. - DOOR WARNING LAMP DRIVER + MKZ 9U5T-14474-YA
2 CLS34 (GY) 26 SWITCH - PARK LAMPS Fusion 9U5T-14474-YA
3 CLN56 (BN) 26 DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN 9U5T-14474-YA
4 CMP18 (GN-BN) 22 SWITCH - PARKING AID 9U5T-14474-DA
5 CPK35 (YE) 22 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + MKZ 9U5T-14474-DA
5 CPK35 (YE) 26 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + Fusion 9U5T-14474-YA
6 * * Not Used N/A
7 CLN55 (WH) 26 DIMMER - IP/SWITCH ILLUMINATION # DIM UP 9U5T-14474-YA
8 CLF57 (BN-WH) 26 SWITCH - FOG LAMPS REAR (USE CLS48 GOING FORWARD) 9U5T-14474-YA
9 * * Not Used N/A
10 * * Not Used N/A
11 * * Not Used N/A
12 * * Not Used N/A
13 VDN07 (WH-VT) 22 CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE [OBSOLETE - REPLACED BY VPSD7] Fusion 9U5T-14474-DA
13 VDN07 (WH) 26 CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE [OBSOLETE - REPLACED BY VPSD7] MKZ 9U5T-14474-YA
13 VDN07 (VT-WH) 22 CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE [OBSOLETE - REPLACED BY VPSD7] MKZ - less interior light group 9U5T-14474-DA
14 CPL24 (YE-BU) 22 SWITCH - FUEL FILLER DOOR # RELEASE 9U5T-14474-DA
15 CLF24 (YE-BU) 26 SWITCH - HEADLAMP ON 9U5T-14474-YA
16 CLF23 (VT) 26 SWITCH - HEADLAMP OFF 9U5T-14474-YA
17 CMP32 (GN) 22 SWITCH - ACTIVE PARK ASSIST (AUTOPARK) 9U5T-14474-DA
18 RRH02 (GN-WH) 26 CTRL MOD. - SWITCH HORN 9U5T-14474-YA
19 CLS32 (BN-YE) 22 SWITCH - HAZARD Fusion 9U5T-14474-DA
19 CLS32 (BN-YE) 26 SWITCH - HAZARD MKZ 9U5T-14474-YA
20 CLF21 (GY-BN) 26 SWITCH - FOG LAMPS FRONT 9U5T-14474-YA
21 CLF19 (VT-WH) 26 SWITCH - AUTOLAMP (1) ON 9U5T-14474-YA
22 RLF14 (GY-BN) 26 SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) - 9U5T-14474-YA
23 * * Not Used N/A
24 VLF14 (BU) 26 SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) + 9U5T-14474-YA
25 * * Not Used N/A
26 VPL56 (BU-WH) 26 RECEIVER - REMOTE RF 9U5T-14474-YA
27 RPK05 (YE-OG) 22 CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) - 9U5T-14474-DA
28 * * Not Used N/A
29 * * Not Used N/A
30 * * Not Used N/A
31 * * Not Used N/A
32 * * Not Used N/A
33 * * Not Used N/A
34 CMP02 (BU) 26 CTRL MOD. - PARKING AID # INDICATOR STATUS 9U5T-14474-YA
35 * * Not Used N/A
36 * * Not Used N/A
37 * * Not Used N/A
38 * * Not Used N/A
39 CPK36 (VT) 22 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED MKZ 9U5T-14474-DA
39 CPK36 (VT) 26 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED Fusion 9U5T-14474-YA
40 VPK05 (BN-GN) 22 CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) + 9U5T-14474-DA
41 * * Not Used N/A
42 * * Not Used N/A
43 * * Not Used N/A
44 VLN78 (VT-OG) 22 CTRL MOD. - PUSH TO START SWITCH PULSING ILLUMINATION 9U5T-14474-DA
45 VLN04 (BU-WH) 26 CTRL MOD. - IP/SWITCH ILLUMINATION MKZ 9U5T-14474-YA
45 VLN04 (VT) 26 CTRL MOD. - IP/SWITCH ILLUMINATION Fusion 9U5T-14474-YA
46 CET53 (BU-OG) 22 CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK 9U5T-14474-DA
47 * * Not Used N/A
48 * * Not Used N/A
49 * * Not Used N/A
50 * * Not Used N/A
51 CPK34 (BN-VT) 22 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + MKZ 9U5T-14474-DA
51 CPK34 (BN-VT) 20 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + Fusion 9U5T-14474-DA
52 * * Not Used N/A
