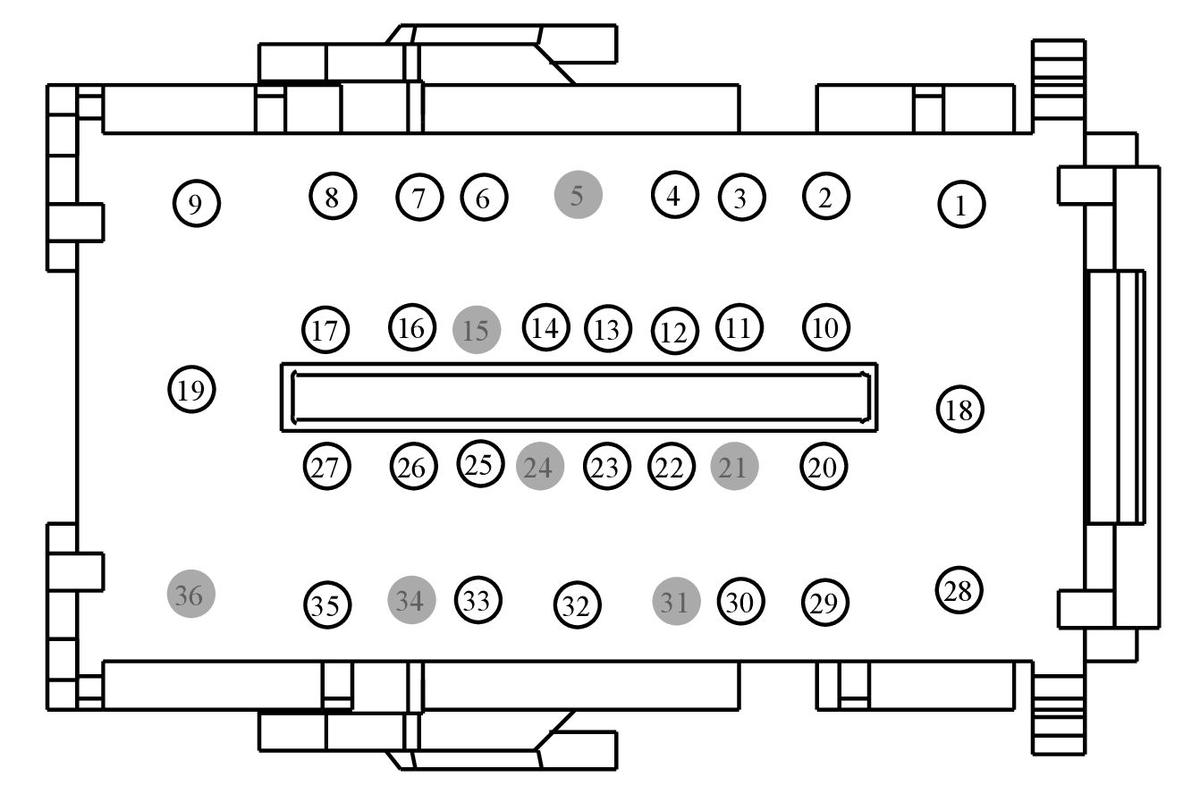

Connector End View (C2280F) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280F	BODY CONTROL MODULE (BCM)	14A005			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7C3T-14474-CA	DU2Z-14474-DA	1.5
DU5T-14474-JBA	EU2Z-14474-AA	2.8
DU5T-14474-NBA	EU2Z-14474-AA	2.8
DU5T-14474-LBA	EU2Z-14474-AA	2.8
BU5T-14474-UA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP29 (GY-RD)	12	FUSE - 29 OR CIRCUIT BREAKER	DU5T-14474-RBA
2	CBP28 (GY-VT)	10	FUSE - 28 OR CIRCUIT BREAKER	MKZ	DU5T-14474-NBA
2	SBP28 (GN-RD)	14	FUSE - 28 OR CIRCUIT BREAKER	Fusion	DU5T-14474-LBA
3	SBP03 (BU-RD)	22	FUSE - 3 OR CIRCUIT BREAKER	BU5T-14474-UA
4	CBX07 (GN-RD)	22	POWER - CTRL MOD. AMBIENT LIGHTING	BU5T-14474-UA
5	*	*	Not Used	N/A
6	GD326 (BK-WH)	18	GROUND - FLOOR CROSS MEMBER REAR LEFT	7C3T-14474-DA
7	GD326 (BK-WH)	18	GROUND - FLOOR CROSS MEMBER REAR LEFT	7C3T-14474-DA
8	CBP36 (BU-BN)	14	FUSE - 36 OR CIRCUIT BREAKER	DU5T-14474-LBA
9	SBP30 (BN-RD)	12	FUSE - 30 OR CIRCUIT BREAKER	DU5T-14474-RBA
10	GD382 (BK-GY)	14	GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT	DU5T-14474-LBA
11	CLS28 (BU-WH)	20	CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC)	7C3T-14474-CA
12	CLS05 (BU-GY)	22	CTRL MOD. - PARK LAMPS 1	BU5T-14474-UA
13	VLN33 (GY-VT)	22	CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE)	7C3T-14474-CA
14	CLN09 (YE-GN)	20	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)	MKZ	BU5T-14474-UA
14	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)	Fusion	7C3T-14474-CA
15	*	*	Not Used	N/A
16	SBP10 (YE-RD)	22	FUSE - 10 OR CIRCUIT BREAKER	PHEV	BU5T-14474-UA
16	SBP10 (YE-RD)	20	FUSE - 10 OR CIRCUIT BREAKER	Fusion, MKZ	7C3T-14474-CA
17	SBP14 (BN-RD)	18	FUSE - 14 OR CIRCUIT BREAKER	DU5T-14474-JBA
18	SBP26 (YE-RD)	10	FUSE - 26 OR CIRCUIT BREAKER	DU5T-14474-UBA
19	SBP27 (BU-RD)	12	FUSE - 27 OR CIRCUIT BREAKER	DU5T-14474-RBA
20	SBP05 (GY-RD)	16	FUSE - 5 OR CIRCUIT BREAKER	MKZ - base audio	DU5T-14474-JBA
20	SBP05 (GY-RD)	14	FUSE - 5 OR CIRCUIT BREAKER	Fusion - base audio	DU5T-14474-LBA
20	SBP05 (GY-RD)	16	FUSE - 5 OR CIRCUIT BREAKER	Fusion - premium audio	DU5T-14474-JBA
20	SBP05 (GY-RD)	10	FUSE - 5 OR CIRCUIT BREAKER	MKZ - premium audio	DU5T-14474-NBA
21	*	*	Not Used	N/A
22	SBP32 (VT-RD)	20	FUSE - 32 OR CIRCUIT BREAKER	7C3T-14474-CA
23	CBP22 (GN-OG)	18	FUSE - 22 OR CIRCUIT BREAKER	7C3T-14474-DA
24	*	*	Not Used	N/A
25	CLS37 (WH)	20	CTRL MOD. - FOG LAMP REAR (RIGHT OR COMMON)	BU5T-14474-UA
26	CLN25 (VT)	22	RELAY - PUDDLE LAMPS (KERB ILLUM.)	MKZ	BU5T-14474-UA
27	CPL51 (BU-GN)	14	CTRL MOD. - DOOR LOCK # DRIVER UNLOCK	Fusion	DU5T-14474-LBA
27	CPL51 (GN-BU)	14	CTRL MOD. - DOOR LOCK # DRIVER UNLOCK	MKZ	DU5T-14474-LBA
27	CPL51 (BU-GN)	14	CTRL MOD. - DOOR LOCK # DRIVER UNLOCK	MKZ - China	DU5T-14474-LBA
28	SBP25 (RD)	12	FUSE - 25 OR CIRCUIT BREAKER	PHEV	DU5T-14474-RBA
28	SBP25 (RD)	10	FUSE - 25 OR CIRCUIT BREAKER	Fusion	DU5T-14474-UBA
28	SBP25 (RD)	12	FUSE - 25 OR CIRCUIT BREAKER	MKZ	DU5T-14474-RBA
29	SBP02 (YE-RD)	20	FUSE - 2 OR CIRCUIT BREAKER	DU5T-14474-JBA
30	CBP23 (BN-YE)	22	FUSE - 23 OR CIRCUIT BREAKER	Fusion	7C3T-14474-CA
30	CBP23 (BN-YE)	20	FUSE - 23 OR CIRCUIT BREAKER	MKZ	BU5T-14474-UA
31	*	*	Not Used	N/A
32	CPL13 (BN-GN)	14	CTRL MOD. - DOOR LOCK # ALL UNLOCK	DU5T-14474-LBA
33	CPL10 (GN-WH)	22	CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID RELEASE	Fusion/PHEV	7C3T-14474-CA
33	CPL10 (GN-WH)	18	CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID RELEASE	MKZ	7C3T-14474-DA
34	*	*	Not Used	N/A
35	CPL11 (GY-BN)	14	CTRL MOD. - DOOR LOCK # ALL LOCK	DU5T-14474-LBA
36	*	*	Not Used	N/A
