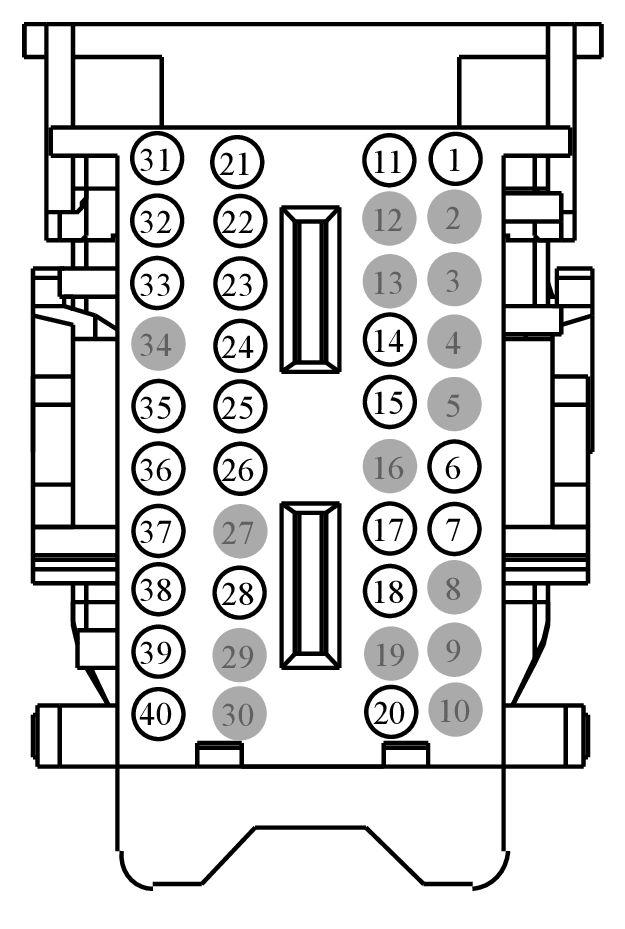

Connector End View (C2280C) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280C	BODY CONTROL MODULE (BCM)	12A581			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DA	DU2Z-14474-AA	0.64
9U5T-14474-EA	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VMP21 (WH-BN)	20	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE	9U5T-14474-DA
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	CLS04 (GN-WH)	20	CTRL MOD. - LICENSE PLATE	9U5T-14474-DA
6	CLS56 (YE-GN)	22	LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT	9U5T-14474-DA
7	LMP06 (VT-GY)	20	CTRL MOD. - PARKING AID # SENSORS FRONT +	9U5T-14474-DA
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	VMP20 (GY-OG)	20	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE	9U5T-14474-DA
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	CPL25 (BU-OG)	20	SWITCH - HOOD # AJAR	9U5T-14474-DA
15	CLF61 (GN-OG)	20	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	9U5T-14474-DA
16	*	*	Not Used	N/A
17	CLS05 (GN-WH)	20	CTRL MOD. - PARK LAMPS 1	Fusion	9U5T-14474-DA
17	CLS58 (BU-WH)	22	LAMP - TURN FRONT RIGHT # SIGNAL OUT	MKZ	9U5T-14474-DA
18	CE436 (VT-OG)	22	CTRL MOD. -WAKE UP PCM	9U5T-14474-DA
19	*	*	Not Used	N/A
20	CRH02 (BU-WH)	20	SWITCH - HORN	9U5T-14474-DA
21	VMP13 (BU-OG)	20	SENSOR - PARKING AID # FRONT # (RIGHT OUTER)	9U5T-14474-DA
22	VMP12 (BU-GY)	20	SENSOR - PARKING AID # FRONT # (RIGHT INNER)	9U5T-14474-DA
23	CDC71 (YE-GY)	20	CTRL MOD. - POWER OUTLET ENABLE OR SET	9U5T-14474-DA
24	CDC40 (VT-GY)	20	RELAY - DELAY ACCESSORY	9U5T-14474-DA
25	CDC55 (BN-VT)	20	RELAY - RUN START	9U5T-14474-DA
26	CE226 (YE-VT)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	9U5T-14474-DA
27	*	*	Not Used	N/A
28	CMC19 (GY-VT)	20	SWITCH - LOW LEVEL BRAKE FLUID	9U5T-14474-DA
29	*	*	Not Used	N/A
30	*	*	Not Used	N/A
31	VMP11 (BU-GN)	20	SENSOR - PARKING AID # FRONT # (LEFT OUTER)	9U5T-14474-DA
32	VMP10 (WH-BU)	20	SENSOR - PARKING AID # FRONT # (LEFT INNER)	9U5T-14474-DA
33	CDC72 (BN-WH)	20	CTRL MOD. - POWER OUTLET DISABLE OR RESET	9U5T-14474-DA
34	*	*	Not Used	N/A
35	RMP06 (YE-OG)	20	CTRL MOD. - PARKING AID # SENSORS FRONT -	9U5T-14474-DA
36	CLF61 (BU-GY)	20	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	9U5T-14474-DA
37	CLS14 (YE-GY)	18	CTRL MOD. - SIDE MARKER FRONT RIGHT	9U5T-14474-EA
38	CLS25 (YE-VT)	20	CTRL MOD. - TURN LAMP RIGHT FRONT	Fusion	9U5T-14474-DA
38	CLS25 (YE-VT)	22	CTRL MOD. - TURN LAMP RIGHT FRONT	MKZ	9U5T-14474-DA
39	CLS21 (BU-GN)	20	CTRL MOD. - TURN LAMP LEFT FRONT	Fusion	9U5T-14474-DA
39	CLS21 (GN-BU)	22	CTRL MOD. - TURN LAMP LEFT FRONT	MKZ	9U5T-14474-DA
40	CLF61 (BU-GY)	20	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	9U5T-14474-DA
