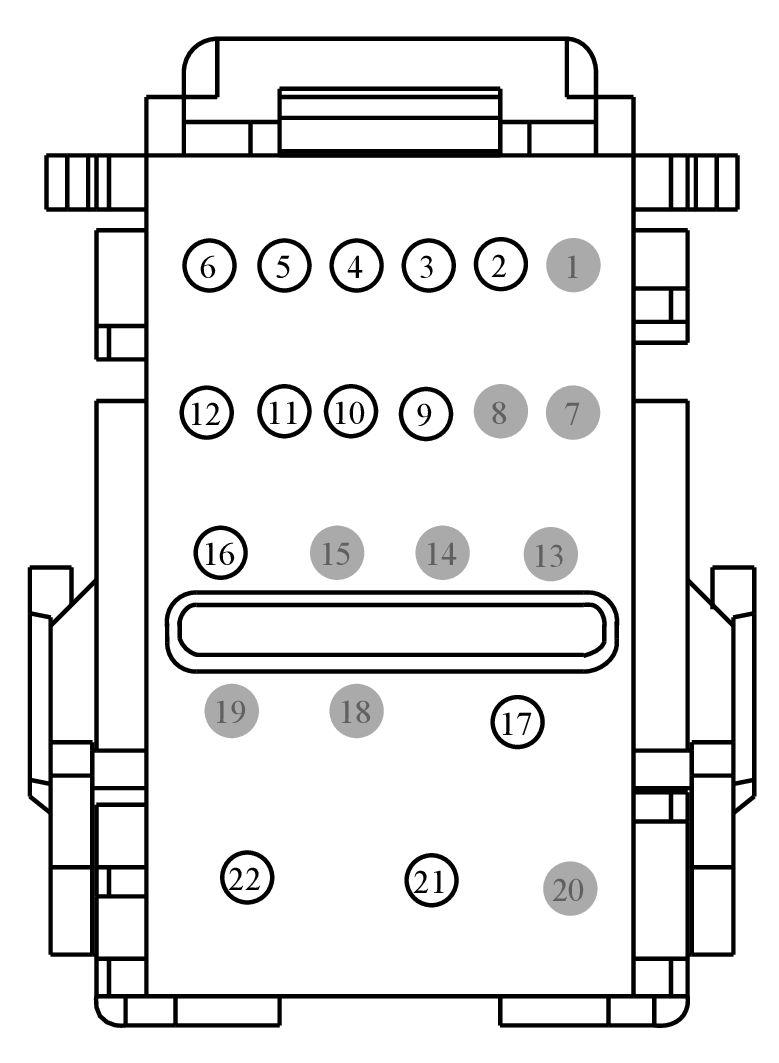

Connector End View (C2280B) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280B	BODY CONTROL MODULE (BCM)	12A581			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-BAA	Not Available
BU5T-14474-UA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	CLF05 (BU-GN)	20	CTRL MOD. - BEAM LOW RIGHT	BU5T-14474-UA
3	CLS05 (BU-GY)	20	CTRL MOD. - PARK LAMPS 1	BU5T-14474-UA
4	CLF04 (BN-BU)	20	CTRL MOD. - BEAM LOW LEFT	BU5T-14474-UA
5	CLF34 (YE-OG)	20	CTRL MOD. - FOG LAMPS FRONT RIGHT OR COMMON	Fusion	BU5T-14474-UA
5	CLS07 (BN-YE)	20	CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT	MKZ	BU5T-14474-UA
6	CLF03 (VT-OG)	20	CTRL MOD. - BEAM HIGH RIGHT	BU5T-14474-UA
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	BU5T-14474-UA
10	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	BU5T-14474-UA
11	CLF02 (GY-BN)	20	CTRL MOD. - BEAM HIGH LEFT	BU5T-14474-UA
12	CLF29 (BN)	20	CTRL MOD. - FOG LAMPS FRONT (LEFT)	Fusion	BU5T-14474-UA
12	CLS06 (BN-YE)	20	CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT	MKZ	BU5T-14474-UA
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	CLN09 (YE-GN)	20	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)	BU5T-14474-BAA
17	SBF03 (BU-RD)	10	FUSE - 3	YF1T-14474-BA
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	SBB67 (BU-RD)	10	FUSE - 67 OR CIRCUIT BREAKER	YF1T-14474-BA
22	SBB62 (BN-RD)	10	FUSE - 62 OR CIRCUIT BREAKER	YF1T-14474-BA
