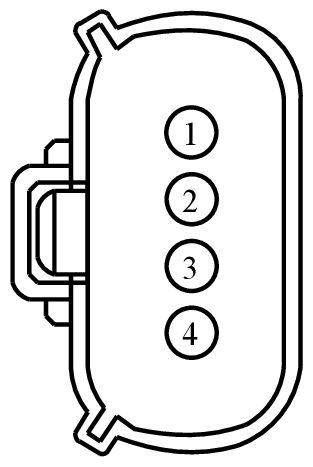

Connector End View (C2251) - AIR CONDITIONING CONTROL MODULE (ACCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2251	AIR CONDITIONING CONTROL MODULE (ACCM)	3C221			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB54 (VT-OG)	18	FUSE - 54 OR CIRCUIT BREAKER	7C3T-14474-DA
2	VDB04 (WH-BU)	18	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	7C3T-14474-DA
3	VDB05 (WH)	18	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	7C3T-14474-DA
4	GD113 (BK-YE)	18	GROUND - COWL TOP RIGHT	7C3T-14474-DA

Available Pigtail Kits

Pigtail Kit Part Number WPT-925

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-TA

Gauge:

14

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• A/C Compressor Clutch
• Lamp - Headlamp - High/Low Beam
