Connector End View (C2239) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C2239	INLINE	GY	14401PIA	See Below

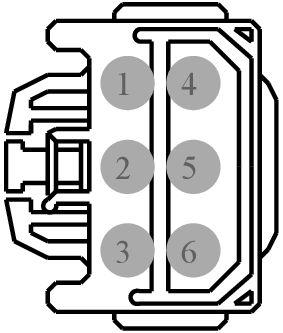

MALE

Harness

14401

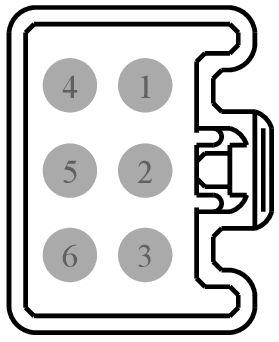

FEMALE

Harness

PIA

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	SB103 (BU-RD)	10	N/A
2	SB104 (GN-RD)	10	N/A
3	SB105 (GY-RD)	10	N/A
4	GD216 (BK-WH)	10	N/A
5	GD216 (BK-WH)	10	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	*	*	N/A
2	*	*	N/A
3	*	*	N/A
4	*	*	N/A
5	*	*	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-363

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-HEA

Gauge:

10 12 16

Pin material:

Tin & Gold

Cavities:

6

Vehicle Uses:

• Switch - Heater / A/C Blower (Front)
