Connector End View (C2238) - INLINE
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C2238 | INLINE | none | 1440114A103 | See Below | ||||

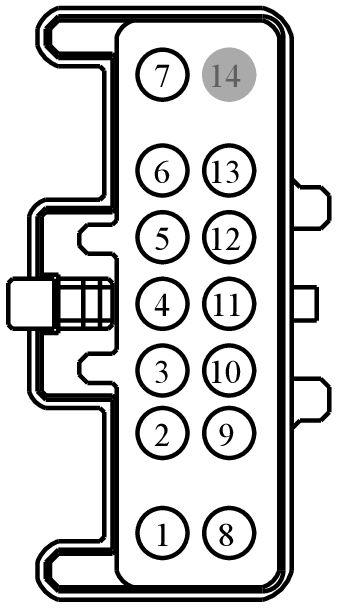

MALE
Harness
14401

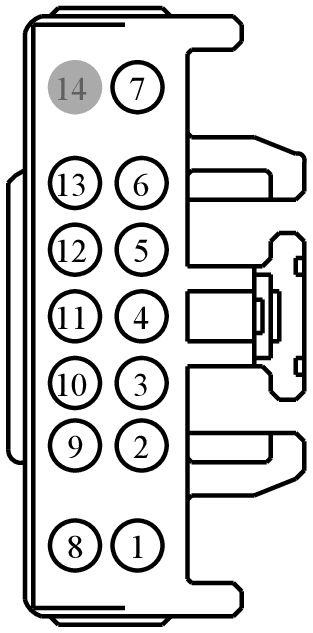

FEMALE
Harness
14A103
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | SBP28 (GN-RD) | 16 | 14401 | N/A | ||
| 2 | - () | * | N/A | |||
| 3 | - () | * | N/A | |||
| 4 | - () | * | N/A | |||
| 5 | - () | * | N/A | |||
| 6 | CB118 (YE-OG) | 20 | 14401 | N/A | ||
| 7 | CB110 (YE) | 14 | 14401 | N/A | ||
| 8 | SBP05 (GY-RD) | 14 | 14401 | N/A | ||
| 9 | VMC05 (VT-OG) | 22 | 14401 | N/A | ||
| 10 | CBP23 (BN-YE) | 22 | 14401 | N/A | ||
| 11 | SBP09 (RD) | 18 | 14401 | N/A | ||
| 12 | CET60 (WH-GN) | 22 | 14401 | N/A | ||
| 13 | CPL26 (GN-VT) | 22 | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | SBP28 (GY-RD) | 14 | 14A103 | N/A | ||
| 2 | CAP14 (GY-BN) | 22 | 14A103 | N/A | ||
| 3 | CAP15 (WH-VT) | 22 | 14A103 | N/A | ||
| 4 | CAP16 (GN-BN) | 22 | 14A103 | N/A | ||
| 5 | CAP17 (YE-GY) | 22 | 14A103 | N/A | ||
| 6 | CB118 (BN-BU) | 22 | 14A103 | N/A | ||
| 7 | CBB73 (WH-BN) | 16 | 14A103 | N/A | ||
| 8 | SBP05 (GN-VT) | 14 | 14A103 | N/A | ||
| 9 | VMC05 (VT-OG) | 20 | 14A103 | N/A | ||
| 10 | CBP23 (GN-VT) | 18 | 14A103 | N/A | ||
| 11 | SBP09 (YE-RD) | 18 | 14A103 | N/A | ||
| 12 | CET60 (GN) | 22 | 14A103 | N/A | ||
| 13 | CPL26 (GN-VT) | 22 | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1604
Service Part Number:
KU2Z-14S411-RA
Gauge:
14 16
Pin material:
Tin & Silver
Cavities:
14
Vehicle Uses:
- Connector - Inline
- Connector - Speaker Inline
- Control - Electronic Brake (Trailer Tow)
Pigtail Kit Part Number WPT-955
Service Part Number:
3U2Z-14S411-BJAC
Gauge:
12 14 16
Pin material:
Tin & Silver
Cavities:
14
Vehicle Uses:
- Connector - Inline
