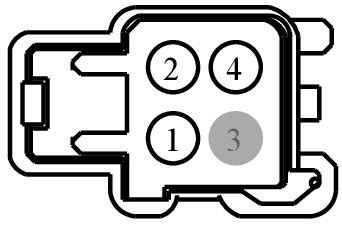

Connector End View (C2237) - Inline
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C2237 | Inline | 1440114A103 | See Below | |||||
MALE
Harness
14401
FEMALE
Harness
14A103
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-AAB | Not Available | |
| 2L1T-14421-CA | EU2Z-14421-CA | 1.5 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CAP07 (YE) | 16 | 2L1T-14421-CA | |||
| 2 | DAP07 (*) | 20 | 97BG-14421-AAB | |||
| 3 | * | * | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CAP07 (YE) | 18 | N/A | |||
| 2 | DAP07 (*) | 20 | N/A | |||
| 3 | * | * | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1076
Service Part Number:
3U2Z-14S411-BUB
Gauge:
14
Pin material:
Tin (greased)
Cavities:
4
Vehicle Uses:
- Connector - Inline
- Element - Heated Seat
- Lamp - Ash Tray
- Lamp - Courtesy - Footwell
- Module - Remote Keyless Entry
- Motor - Heater/AC Blower (Auxiliary)
- Radio - Amplifier
- Switch - Convertable Top
Pigtail Kit Part Number WPT-977
Service Part Number:
3U2Z-14S411-LUB
Gauge:
14
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Element - Heated Seat
- Lamp - Ambient Lighting
- Lamp - Courtesy - Footwell
- Mirror - Sideview
- Motor - Adjustable Pedal
- Motor - Steering Column Adjust
- Solenoid - Brake Shift Park Interlock
- Speaker - Subwoofer
- Switch - Gear Shift Select/Neutral Safety
- Transceiver - Passive Anti-Theft (PATS)
