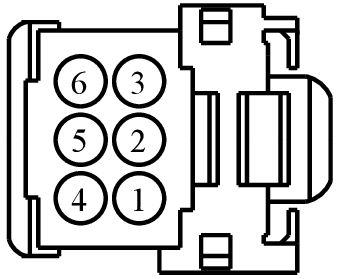

Connector End View (C2195) - IGNITION SWITCH-PUSH BUTTON START
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C2195 | IGNITION SWITCH-PUSH BUTTON START | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-MA | DU2Z-14474-BA | 0.64 |
| 9U5T-14474-NA | DU2Z-14474-BA | 0.64 |
| 9U5T-14474-LA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPK34 (BN-VT) | 20 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + | 9U5T-14474-MA | ||||
| 2 | CPK36 (VT) | 26 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED | 9U5T-14474-NA | ||||
| 3 | GD214 (BK-BU) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE | 9U5T-14474-MA | ||||
| 4 | SBP18 (YE-RD) | 22 | FUSE - 18 OR CIRCUIT BREAKER | 9U5T-14474-LA | ||||
| 5 | VLN04 (VT) | 26 | CTRL MOD. - IP/SWITCH ILLUMINATION | 9U5T-14474-NA | ||||
| 6 | CPK35 (YE) | 26 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + | 9U5T-14474-NA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1164
Service Part Number:
8U2Z-14S411-JB
Gauge:
18
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Switch - Deck Lid / Hatch Release
- Switch - Deck Lid / Lift Gate Ajar
- Switch - Hazard Warning
- Switch - Heated Back Light (Rear Defrost)
- Switch - Power Liftgate
- Switch - Reverse Park Aid
- Switch - Start/Stop
- Switch - Sunshade
- Switch - Traction Control
