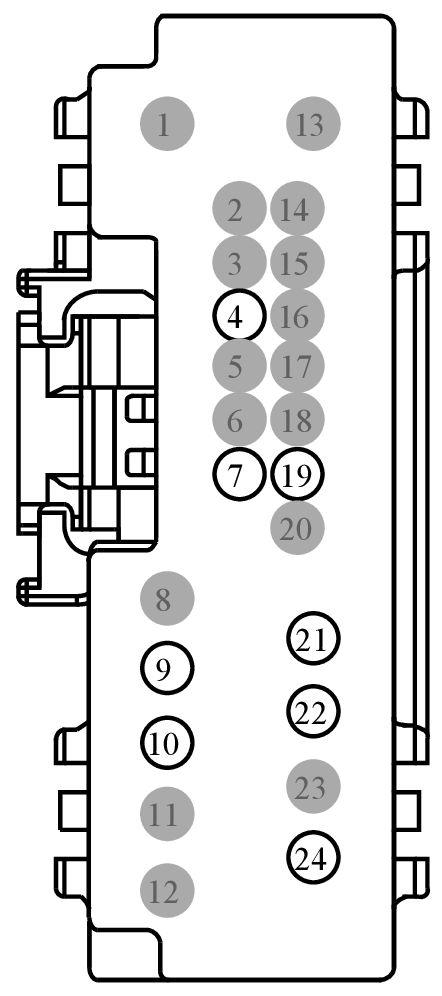

Connector End View (C2129) - HEADLAMP CONTROL MODULE (HCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2129	HEADLAMP CONTROL MODULE (HCM)	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
*7C3T-14474-CA	Not Available
9U5T-14474-LA	DU2Z-14474-BA	0.64
BU5T-14474-UA	DU2Z-14474-DA	1.5
97BG-14474-BAA	DU2Z-14474-EA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE	9U5T-14474-LA
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	VDB05 (WH)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	9U5T-14474-LA
8	*	*	Not Used	N/A
9	DLF32 (*)	20	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT LEFT (LIN BUS) D	*7C3T-14474-CA
10	VLF32 (YE)	22	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT LEFT (LIN BUS) +	BU5T-14474-UA
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	VDB04 (BU)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	9U5T-14474-LA
20	*	*	Not Used	N/A
21	VLF33 (BU)	20	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT RIGHT (LIN BUS) +	BU5T-14474-UA
22	DLF33 (*)	20	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT RIGHT (LIN BUS) D	*7C3T-14474-CA
23	*	*	Not Used	N/A
24	CBP20 (YE-VT)	22	FUSE - 20 OR CIRCUIT BREAKER	97BG-14474-BAA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1550

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-AJA

Gauge:

14 16 20

Pin material:

Tin & Silver

Cavities:

24

Vehicle Uses:

• Lamp - Front Cornering/ Turn
• Module - Driver Door
• Module - Headlamp Control
• Module - Heated Seat
• Module - Seat Memory
• Module - Upfitter Interface
