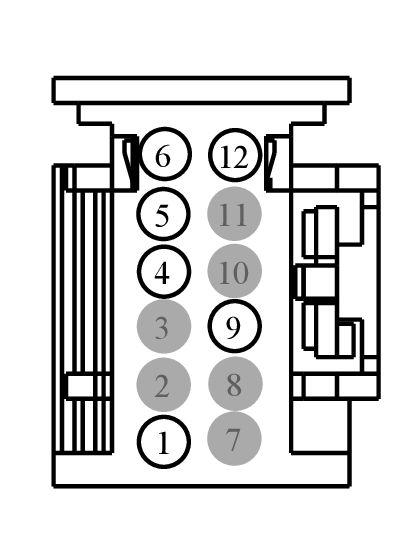

Connector End View (C2123) - FRONT CONTROL/DISPLAY INTERFACE MODULE (FCDIM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2123	FRONT CONTROL/DISPLAY INTERFACE MODULE (FCDIM)	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
96AG-14474-RSA	FU2Z-14474-AA	0.64
AU5T-14474-HA	FU2Z-14474-AA	0.64
96AG-14474-RZA	FU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP32 (VT-RD)	20	FUSE - 32 OR CIRCUIT BREAKER	96AG-14474-RZA
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	VDB29 (GN)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	AU5T-14474-HA
5	VDB30 (WH)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	AU5T-14474-HA
6	VMP19 (WH-GN)	22	CAMERA - PARKING AID REAR VIDEO +	96AG-14474-RSA
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	GD215 (BK-GY)	20	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	96AG-14474-RZA
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	RMP19 (BN-VT)	22	CAMERA - PARKING AID REAR VIDEO -	96AG-14474-RSA

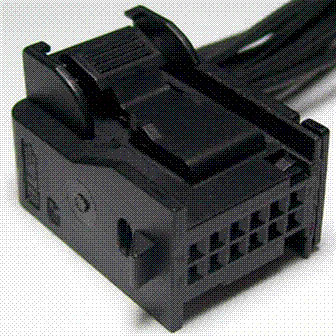

Available Pigtail Kits

Pigtail Kit Part Number WPT-1458

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-CA

Gauge:

20

Pin material:

Tin (greased)

Cavities:

12

Vehicle Uses:

• Message Center
