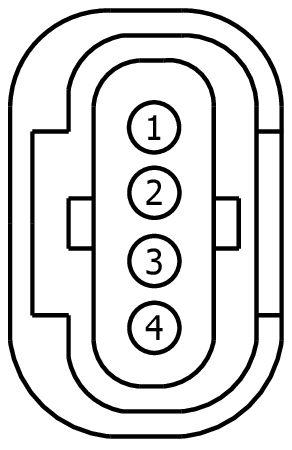

Connector End View (C1827) - GRILLE FLASHING LED, RIGHT
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1827 | GRILLE FLASHING LED, RIGHT | 14A103 | part# N/A | Not Available | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| |BU5T-14421-HA | Not Available | |
| BU5T-14421-HA | EU2Z-14421-CA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VAP08 (BN) | 20 | LOUDSPEAKER - POLICE + | BU5T-14421-HA | ||||
| 2 | CAP28 (GY-BN) | 20 | POLICE - LAMP STROBE PATTERN FRONT | BU5T-14421-HA | ||||
| 3 | CAP26 (GY-OG) | 20 | POLICE - WIGWAG SYNC | |BU5T-14421-HA | ||||
| 4 | GD123 (BK-GY) | 20 | POLICE - LAMP STROBE SYNC FRONT | BU5T-14421-HA | ||||
