Connector End View (C1824) - INLINE
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1824 | INLINE | 14B30814B322 | Not Available | |||||

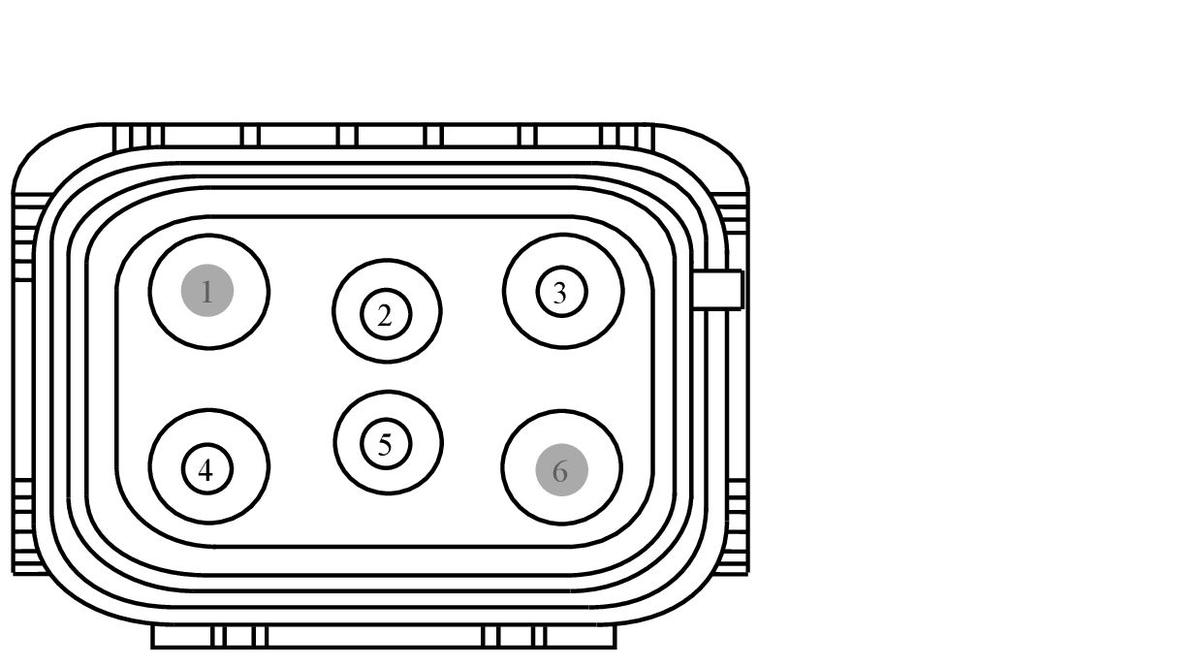

MALE
Harness
14B308

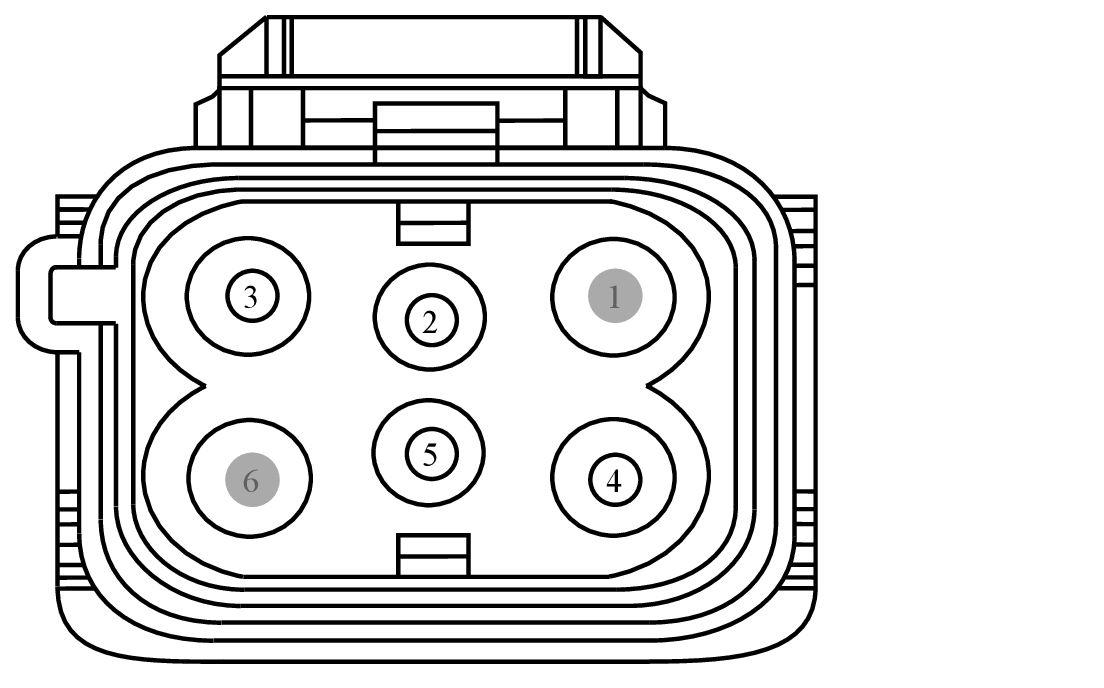

FEMALE
Harness
14B322
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | CYB56 (WH-VT) | 20 | N/A | |||
| 3 | HYB53 (OG) | 12 | N/A | |||
| 4 | HYB54 (OG) | 12 | N/A | |||
| 5 | CYB55 (YE-GY) | 20 | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | CYB56 (WH-VT) | 20 | N/A | |||
| 3 | HYB53 (OG) | 12 | N/A | |||
| 4 | HYB54 (OG) | 12 | N/A | |||
