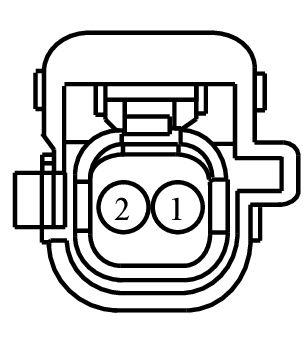

Connector End View (C1815B) - CABIN COOLANT HEATER
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1815B | CABIN COOLANT HEATER | 14B322 | part# N/A | Not Available | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CYB03 (BN-YE) | 20 | CTRL MOD. - TRACTION BATTERY CONTROL # INTERLOCK POS (INT+) | N/A | ||||
| 2 | CYB04 (VT-BN) | 20 | CTRL MOD. - TRACTION BATTERY CONTROL # INTERLOCK NEG (INT-) | N/A | ||||
