Connector End View (C1815A) - CABIN COOLANT HEATER

Connector: Description Color Harness Base Part # Service Pigtail
C1815A CABIN COOLANT HEATER 14B322 part# N/A Not Available

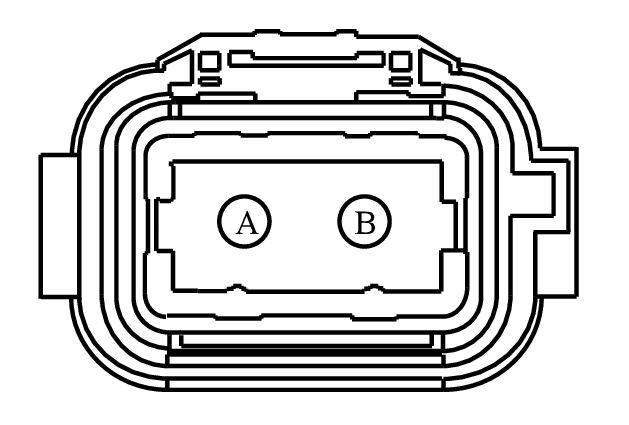

GFDWR99089Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
A HYB20 (OG) 12 HV + PHEV N/A
B HYB21 (OG) 12 HV - PHEV N/A
