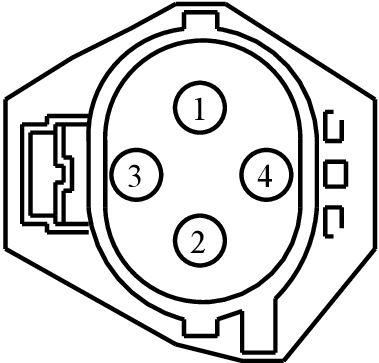

Connector End View (C1812) - ELECTRIC MOTOR COOLANT PUMP

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1812	ELECTRIC MOTOR COOLANT PUMP	3C221			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
93BG-14474-YCA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD192 (BK-VT)	10	GROUND - FENDER FRONT LEFT # 5TH POINT	93BG-14474-YCA
2	SBF05 (GY-RD)	10	FUSE - 5	93BG-14474-YCA
3	CBK03 (GY)	18	FUSE - 3 OR CIRCUIT BREAKER (VPWR 3)	97BG-14474-AEA
4	VDN06 (WH-GN)	18	CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 [OBSOLETE - REPLACED BY VE181]	97BG-14474-AEA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1361

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-LB

Gauge:

10 16

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses:

• Motor - Electric Water Pump
• Motor - Engine Cooling Fan

Pigtail Kit Part Number WPT-935

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-LA

Gauge:

10 16

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Motor - Engine Cooling Fan
