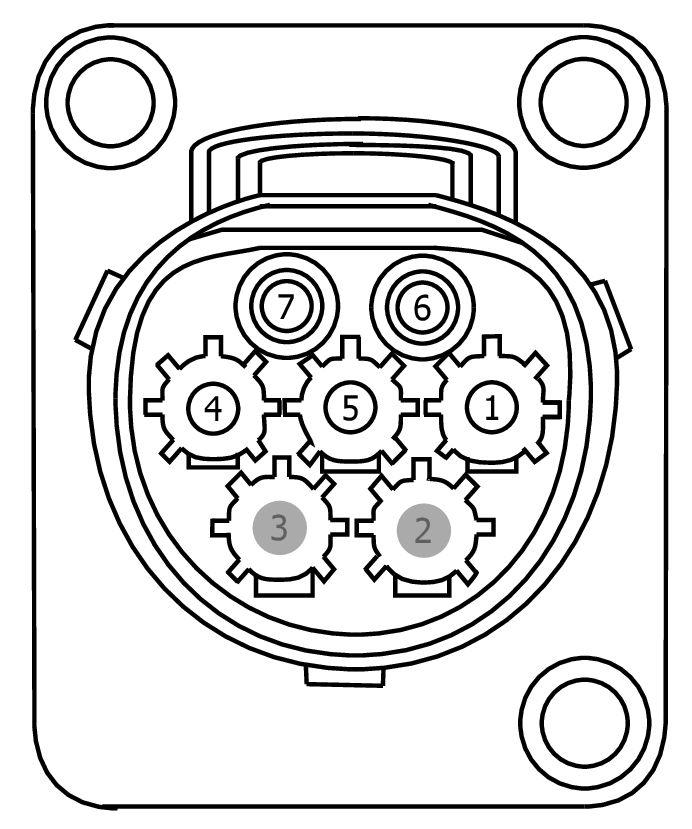

Connector End View (C1808) - CHARGE PORT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1808	CHARGE PORT	14B308			14D665	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7115-5010-06	Not Available
7115-5048-06	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	HYB53 (OG)	12	PORT - HIGH VOLTAGE BATTERY CHARGER INLET 1 (L1)	7115-5010-06
2	- ()	*	Not Used	N/A
3	- ()	*	Not Used	N/A
4	HYB54 (OG)	12	PORT - HIGH VOLTAGE BATTERY CHARGER INLET 2 (L2)	7115-5010-06
5	RYB57 (GN-YE)	20	GROUND - CHARGER AC/BOND	7115-5010-06
5	RYB57 (GN-YE)	12	GROUND - CHARGER AC/BOND	7115-5010-06
6	CYB55 (YE-GY)	20	PORT - HIGH VOLTAGE BATTERY CHARGER INLET # PROXIMITY DETECTION	7115-5048-06
6	CYB55 (YE-GY)	20	PORT - HIGH VOLTAGE BATTERY CHARGER INLET # PROXIMITY DETECTION	7115-5048-06
7	CTB56 (WH-VT)	20	PORT - HIGH VOLTAGE BATTERY CHARGER INLET # CONTROL PILOT	7115-5048-06
