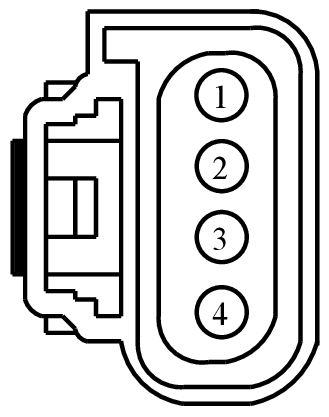

Connector End View (C1806) - CHARGE PORT LIGHT RING

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1806	CHARGE PORT LIGHT RING	12A581			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-MA	DU2Z-14474-BA	0.64
9U5T-14474-LA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB46 (BN-RD)	20	FUSE - 46 OR CIRCUIT BREAKER	9U5T-14474-MA
2	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	9U5T-14474-LA
3	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	9U5T-14474-LA
4	GD120 (BK-GN)	20	GROUND - FENDER FRONT LEFT	9U5T-14474-MA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1328

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-AA

Gauge:

20

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Antenna - Keyless Entry
• Lamp - Charge Port
