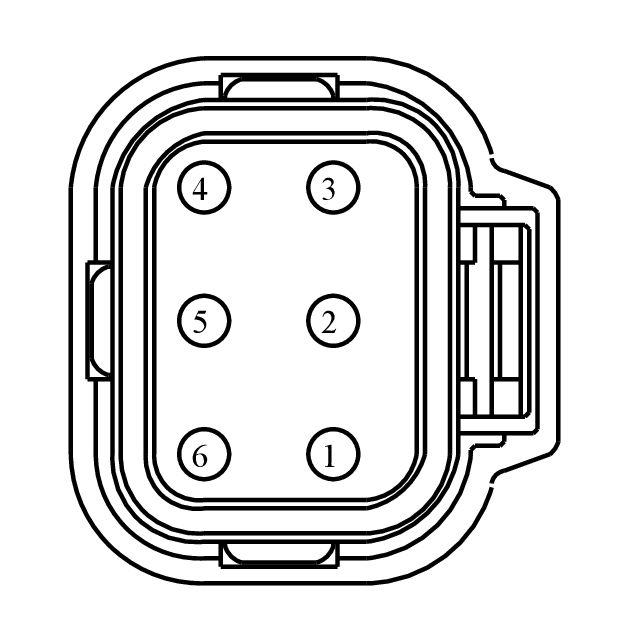

Connector End View (C1746) - ELECTRONIC EXHAUST GAS RECIRCULATION (EEGR) ASSEMBLY

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1746	ELECTRONIC EXHAUST GAS RECIRCULATION (EEGR) ASSEMBLY	12C508			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1S7T-14474-DA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE101 (WH-VT)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 1) (EGRMC) (+)	1S7T-14474-DA
2	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)	1S7T-14474-DA
3	CE102 (YE-BU)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 2) (EGRMC) (-)	1S7T-14474-DA
4	CE103 (BU-BN)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 3) (EGRMC)	1S7T-14474-DA
5	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)	1S7T-14474-DA
6	CE104 (GN-YE)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 4) (EGRMC)	1S7T-14474-DA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1115

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BGAB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

6

Vehicle Uses:

• Sensor - EGR Valve Position
• Valve - EGR
