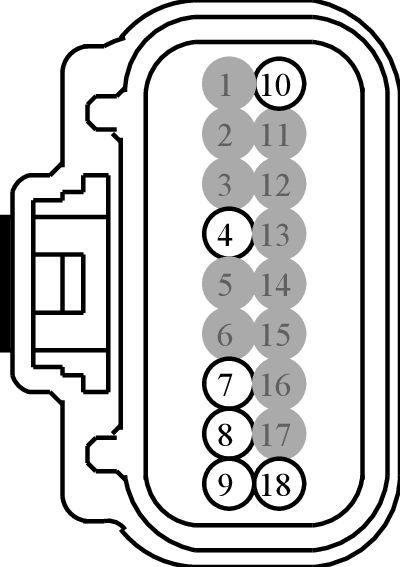

Connector End View (C1582) - CRUISE CONTROL MODULE (CCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1582	CRUISE CONTROL MODULE (CCM)	12A581			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-MA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	GD120 (BK-GN)	18	GROUND - FENDER FRONT LEFT	9U5T-14474-MA
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	VDB26 (GY-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	9U5T-14474-MA
8	VDB25 (GN-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	9U5T-14474-MA
9	VDB28 (GY-VT)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 LOW	9U5T-14474-MA
10	CBB20 (YE-VT)	20	FUSE - 20 OR CIRCUIT BREAKER	Adaptive cruise control	9U5T-14474-MA
10	CBB20 (BN-YE)	20	FUSE - 20 OR CIRCUIT BREAKER	Lincoln China	9U5T-14474-MA
10	CBB23 (BN-YE)	20	FUSE - 23 OR CIRCUIT BREAKER	Auto-start-stop	9U5T-14474-MA
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	VDB27 (VT-GN)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 HIGH	9U5T-14474-MA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1342

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-GA

Gauge:

20

Pin material:

Silver

Cavities:

18

Vehicle Uses:

• Module - Adaptive Cruise Control

Pigtail Kit Part Number WPT-1411

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-GB

Gauge:

18

Pin material:

Silver

Cavities:

18

Vehicle Uses:

• Module - Adaptive Cruise Control
• Module - Occupant Classification
• Module - Reverse Park Aid (RPA)
